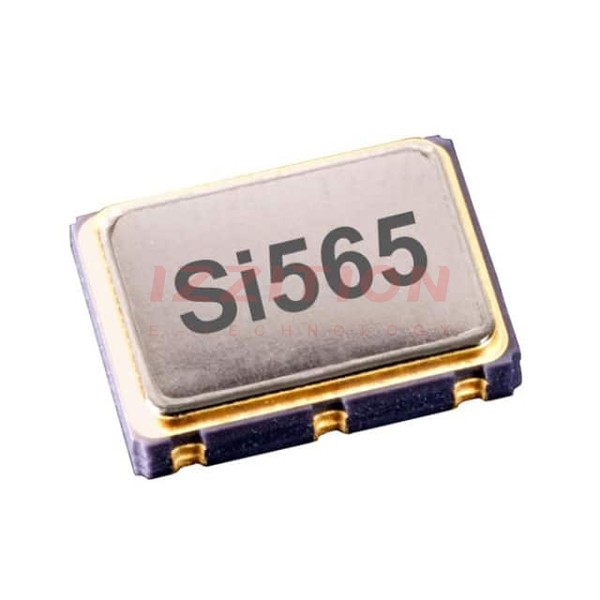

| Part Number | 565BAA100M000ABG | 565BAA100M000ABGR | 565BAA150M000ABG | 565BAA100M000ACG |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Active |
| Base Resonator | Crystal | Crystal | Crystal | Crystal |
| Type | VCXO | VCXO | VCXO | VCXO |
| Frequency | 100 MHz | 100 MHz | 150 MHz | 100 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVDS | LVDS | LVDS | LVDS |
| Voltage - Supply | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V, 2.5V, 3.3V | 1.8V ~ 3.3V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Absolute Pull Range (APR) | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - |
| Current - Supply (Max) | 167mA | 167mA | 167mA | 140mA |
| Ratings | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.056" (1.43mm) | 0.056" (1.43mm) | 0.056" (1.43mm) | 0.056" (1.43mm) |
