Please send RFQ , we will respond immediately.

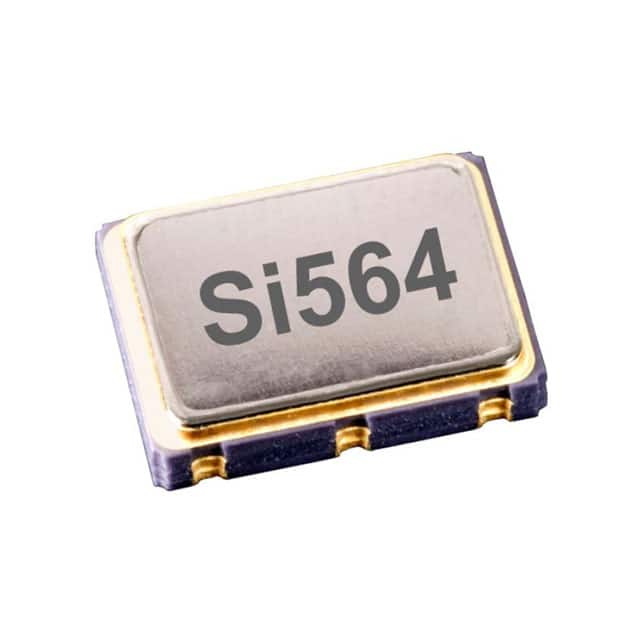

| Part Number | 564BAAA000121ABG | 564BACA000121ABG | 564BAAA000121ABGR | 564BAAA000121ACG | 564AAAA000121ABG |
|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Active | Not For New Designs |
| Base Resonator | Crystal | Crystal | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVDS | LVDS | LVDS | LVDS | LVPECL |
| Voltage - Supply | 1.8V, 2.5V, 3.3V | 1.8V ~ 3.3V | 1.8V, 2.5V, 3.3V | 1.8V ~ 3.3V | 2.5V, 3.3V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 157mA | 130mA | 157mA | 130mA | 160mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.052" (1.33mm) | 0.052" (1.33mm) | 0.052" (1.33mm) | 0.052" (1.33mm) | 0.052" (1.33mm) |
