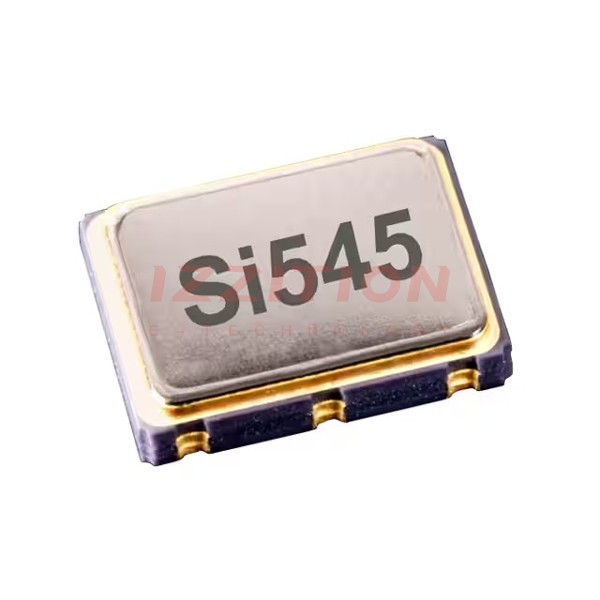

| Part Number | 545AAA312M500BAG | 545AAA312M500BBG | 545AAA312M500BAGR |
|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Silicon Labs | Skyworks Solutions Inc. |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key |
| Base Resonator | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 312.5 MHz | 312.5 MHz | 312.5 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | 2.5V, 3.3V | 2.5V, 3.3V | 2.5V, 3.3V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 153mA | 153mA | 153mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.050" (1.28mm) | 0.052" (1.33mm) | 0.052" (1.33mm) |
