Please send RFQ , we will respond immediately.

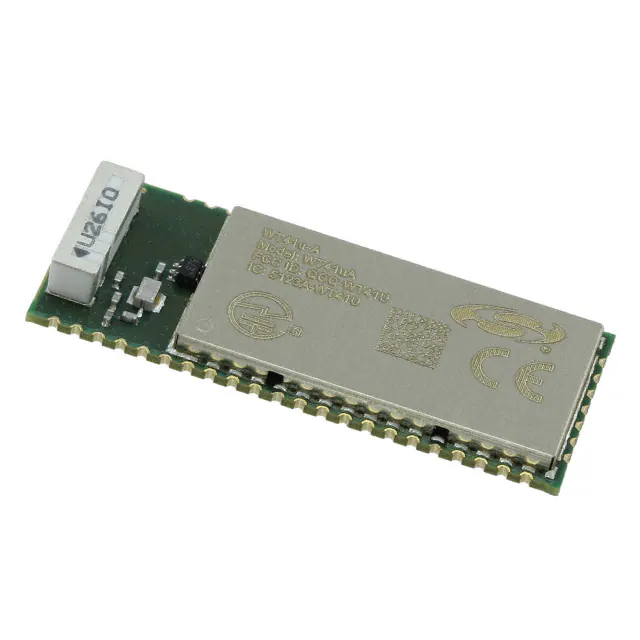

| Part Number | WT41U-A-AI55 | WT41U-A-AI56 | WT41U-A-AI55C | WT41U-A-AI5 |
|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| RF Family/Standard | Bluetooth | Bluetooth | - | Bluetooth |
| Protocol | Bluetooth v2.1 +EDR | Bluetooth v2.1 +EDR | - | Bluetooth v2.1 +EDR, Class 1 |
| Modulation | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | - | - |
| Data Rate | - | - | - | 3Mbps |
| Power - Output | 17dBm | 17dBm | - | 18dBm |
| Sensitivity | -94dBm | -94dBm | - | -96.5dBm |
| Serial Interfaces | UART, USB | SPI, UART, USB | - | SPI, UART, USB |
| Antenna Type | Integrated, Chip | Integrated, Chip | - | Integrated, Chip + U.FL |
| Utilized IC / Part | - | - | - | - |
| Memory Size | - | - | - | - |
| Voltage - Supply | 3.3V | 3.3V | - | 3V ~ 3.6V |
| Current - Receiving | 44mA | 44mA | - | 44mA |
| Current - Transmitting | 110mA | 85mA | - | 85mA ~ 136mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | - | -40°C ~ 85°C |
| Package / Case | Module | Module | Module | Module |
