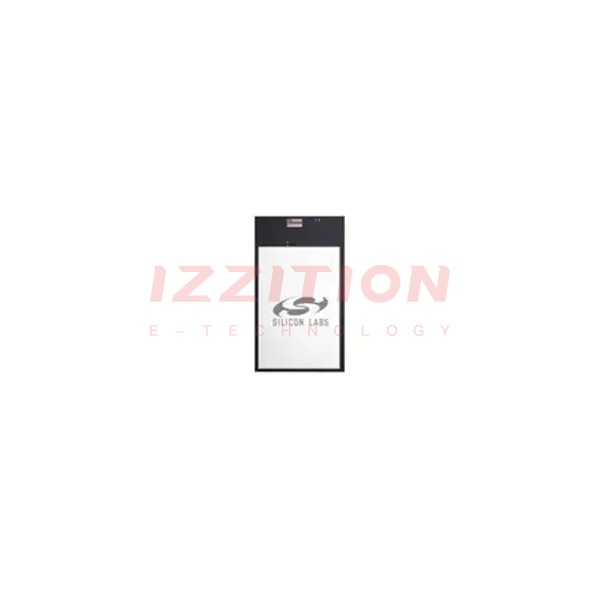

| Part Number | WGM160P022KGA2R | WGM160PX22KGA2R | WGM160P022KGN2R | WGM160P022KGA2 |
|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | - | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 72.2Mbps | 72.2Mbps | 72.2Mbps | 72.2Mbps |
| Power - Output | 16dBm | 16dBm | 16dBm | 16dBm |
| Sensitivity | -96dBm | -96dBm | -96dBm | -96dBm |
| Serial Interfaces | Ethernet, I²C, SPI, UART, USART, USB | Ethernet, I²C, SPI, UART, USART, USB | Ethernet, I²C, SPI, UART, USART, USB | Ethernet, I²C, SPI, UART, USART, USB |
| Antenna Type | Integrated, Chip | Integrated, Chip | Antenna Not Included | Integrated, Chip |
| Utilized IC / Part | - | - | - | - |
| Memory Size | 2MB Flash, 512kB RAM | 2MB Flash, 512kB RAM | 2MB Flash, 512kB RAM | 2MB Flash, 512kB RAM |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | 36.6mA | 36.6mA | 36.6mA | 36.6mA |
| Current - Transmitting | 141.3mA | 141.3mA | 141.3mA | 141.3mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Package / Case | 55-SMD Module | 55-SMD Module | 55-SMD Module | 55-SMD Module |
