Please send RFQ , we will respond immediately.

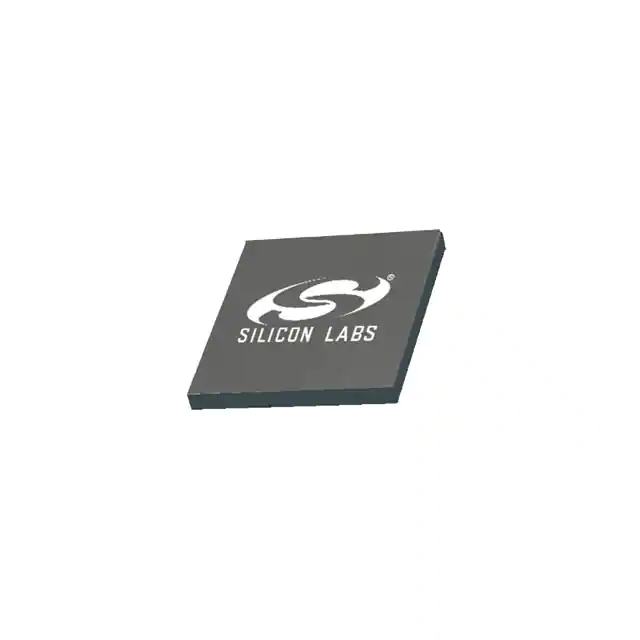

| Part Number | WFM200S022XNA2 | WFM200S022XNN2 | WFM200SS22XNA2 | WFM200S022XNA2R |
|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| RF Family/Standard | WiFi | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | DSSS | DSSS | DSSS | DSSS |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 72.2Mbps | 72.2Mbps | 72.2Mbps | 72.2Mbps |
| Power - Output | 17dBm | 17dBm | 17dBm | 17dBm |
| Sensitivity | - | - | - | - |
| Serial Interfaces | SDIO, SPI | SDIO, SPI | SDIO, SPI | SDIO, SPI |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | WFM200 | WFM200 | WFM200 | WFM200 |
| Memory Size | - | - | - | - |
| Voltage - Supply | - | - | - | - |
| Current - Receiving | 41.6mA | 41.6mA | 41.6mA | 41.6mA |
| Current - Transmitting | 152.6mA | 152.6mA | 152.6mA | 152.6mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Package / Case | Module | Module | Module | Module |
