Please send RFQ , we will respond immediately.
| Part Number | TSM6025AEUR+ | TSM6025AEUR+T | TSM6025BEUR+ |
|---|---|---|---|
| Manufacturer | Silicon Labs | Touchstone Semiconductor | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete |
| Reference Type | Series | Series | Series |
| Output Type | Fixed | Fixed | Fixed |
| Voltage - Output (Min/Fixed) | 2.5V | 2.5V | 2.5V |
| Voltage - Output (Max) | - | - | - |
| Current - Output | 500 µA | 500 µA | 500 µA |
| Tolerance | ±0.2% | ±0.2% | ±0.4% |
| Temperature Coefficient | 20ppm/°C | 20ppm/°C | 30ppm/°C |
| Noise - 0.1Hz to 10Hz | 50µVp-p | 50µVp-p | 50µVp-p |
| Noise - 10Hz to 10kHz | 125µVrms | 125µVrms | 125µVrms |
| Voltage - Input | 2.7V ~ 12.6V | 2.7V ~ 12.6V | 2.7V ~ 12.6V |
| Current - Supply | 35µA | 35µA | 35µA |
| Current - Cathode | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

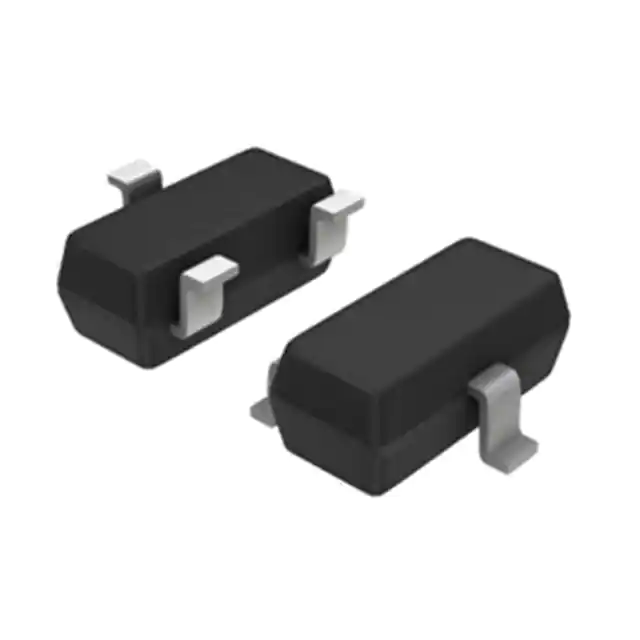

| Package / Case | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 | SOT-23-3 | SOT-23-3 |
