Please send RFQ , we will respond immediately.
| Part Number | TS12011ITD1022 | TS12011ITD1022T | TS12012ITD1022 |
|---|---|---|---|
| Manufacturer | Silicon Labs | Touchstone Semiconductor | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 1 | 1 | 1 |
| Output Type | Push-Pull | Push-Pull | Open Drain |
| Slew Rate | 0.006V/µs | 0.006V/µs | 0.006V/µs |
| Gain Bandwidth Product | 15 kHz | 15 kHz | 15 kHz |
| -3db Bandwidth | - | - | - |
| Current - Input Bias | 20 nA | 20 nA | 20 nA |
| Voltage - Input Offset | 3.5 mV | 3.5 mV | 3.5 mV |
| Current - Supply | 1.1µA | 1.1µA | 1.1µA |
| Current - Output / Channel | 500 µA | 500 µA | 1.4 mA |
| Voltage - Supply Span (Min) | 0.8 V | 0.8 V | 0.8 V |
| Voltage - Supply Span (Max) | 2.5 V | 2.5 V | 2.5 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

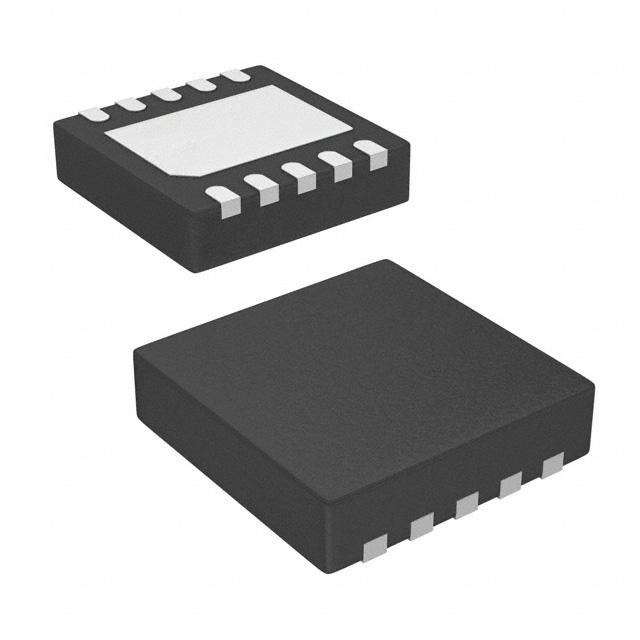

| Package / Case | 10-UFDFN Exposed Pad | 10-UFDFN Exposed Pad | 10-UFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (2x2) | 10-TDFN (2x2) | 10-TDFN (2x2) |
