Silicon Labs-SI7201-B-02-FV - Magnetic Sensors - Switches (Solid State) Product Specifications and Latest Quotes

Function:	Omnipolar Switch
Technology:	Hall Effect
Polarization:	North Pole, South Pole
Sensing Range:	±0.9mT Trip, ±0.2mT Release
Test Condition:	0°C ~ 70°C
Voltage - Supply:	1.7V ~ 3.6V
Current - Supply (Max):	1.1 µA (Typ)
Current - Output (Max):	-
Output Type:	Push-Pull
Features:	Tamper Detection, Temperature Compensation, Digital Filter
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23-3
Package / Case:	TO-236-3, SC-59, SOT-23-3

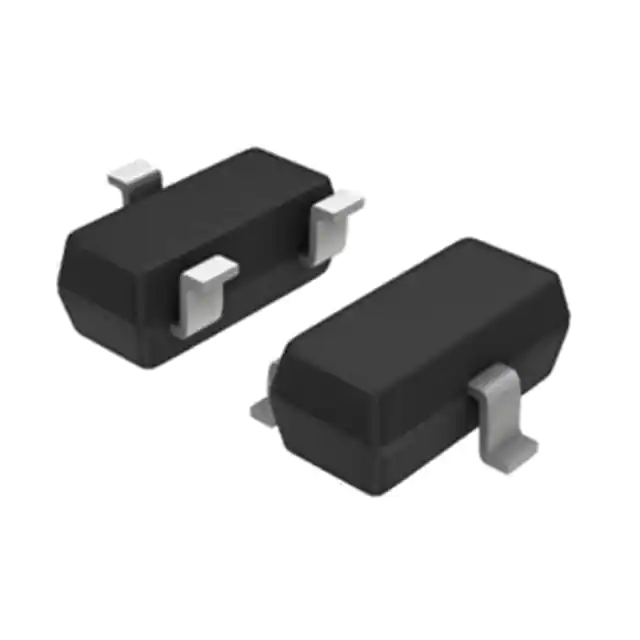

Silicon Labs SI7201-B-02-FV
