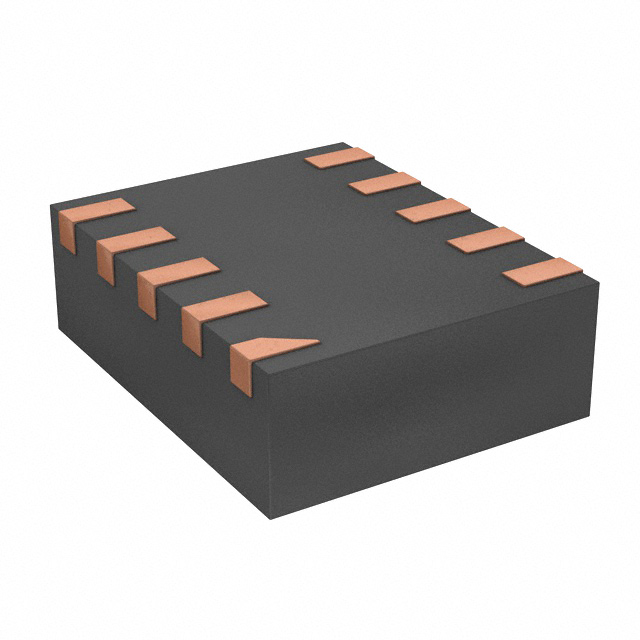

| Part Number | SI50122-A6-GM | SI50122-A6-GMR | SI50122-A1-GM | SI50122-A2-GM | SI50122-A3-GM | SI50122-A4-GM | SI50122-A5-GM |
|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® |
| Frequency | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| Function | - | - | - | - | - | - | - |
| Output | HCSL, LVCMOS | HCSL, LVCMOS | HCSL, LVCMOS | HCSL, LVCMOS | HCSL, LVCMOS | HCSL, LVCMOS | HCSL, LVCMOS |
| Voltage - Supply | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V | 2.25V ~ 3.63V |
| Frequency Stability | +100ppm | +100ppm | +100ppm | +100ppm | +100ppm | +100ppm | +100ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - | - |
| Current - Supply (Max) | 23mA | 23mA | 23mA | 23mA | 23mA | 23mA | 23mA |
| Ratings | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN | 10-VFDFN | 10-VFDFN | 10-VFDFN | 10-VFDFN | 10-VFDFN | 10-VFDFN |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
