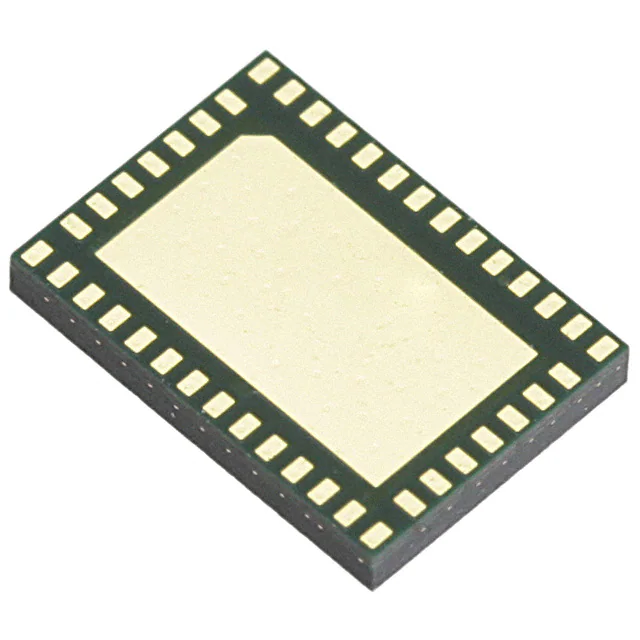

| Part Number | SI1012-C-GM2R | SI1013-C-GM2R | SI1015-C-GM2R | SI1014-C-GM2R | SI1010-C-GM2R | SI1011-C-GM2R | SI1012-C-GM2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro |
| Modulation | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK |
| Frequency | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz |
| Data Rate (Max) | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps |
| Power - Output | 13dBm | 13dBm | 13dBm | 13dBm | 20dBm | 20dBm | 13dBm |
| Sensitivity | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm |
| Memory Size | 16kB Flash, 768B RAM | 8kB Flash, 768B RAM | 8kB Flash, 768B RAM | 16kB Flash, 768B RAM | 16kB Flash, 768B RAM | 8kB Flash, 768B RAM | 16kB Flash, 768B RAM |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| GPIO | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Receiving | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA |
| Current - Transmitting | 17mA ~ 30mA | 17mA ~ 30mA | 17mA ~ 30mA | 17mA ~ 30mA | 85mA | 85mA | 17mA ~ 30mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad | 42-VFLGA Exposed Pad |
| Supplier Device Package | 42-LGA (5x7) | 42-LGA (5x7) | 42-LGA (5x7) | 42-LGA (5x7) | 42-LGA (5x7) | 42-LGA (5x7) | 42-LGA (5x7) |
