Please send RFQ , we will respond immediately.

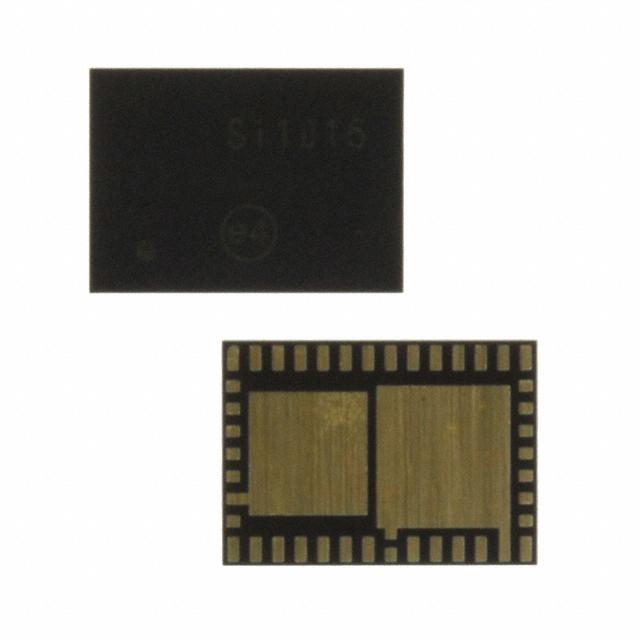

| Part Number | SI1012-A-GMR | SI1062-A-GMR | SI1013-A-GMR | SI1014-A-GMR | SI1015-A-GMR | SI1022-A-GMR | SI1032-A-GMR | SI1010-A-GMR | SI1011-A-GMR | SI1012-A-GM |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | EZRadioPro | - | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro |
| Modulation | FSK, GFSK, OOK | 4FSK, 4GFSK, FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK |
| Frequency | 240MHz ~ 960MHz | 142MHz ~ 1.05GHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz |
| Data Rate (Max) | 256Kbps | 1Mbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps |
| Power - Output | 13dBm | 13dBm | 13dBm | 13dBm | 13dBm | 20dBm (Max) | 20dBm (Max) | 20dBm | 20dBm | 13dBm |
| Sensitivity | -121dBm | -126dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm |
| Memory Size | 16kB Flash, 768B RAM | 64kB Flash 4kB RAM | 8kB Flash, 768B RAM | 16kB Flash, 768B RAM | 8kB Flash, 768B RAM | 32kB Flash, 8.5kB RAM | 32kB Flash, 8.5kB RAM | 16kB Flash, 768B RAM | 8kB Flash, 768B RAM | 16kB Flash, 768B RAM |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| GPIO | 15 | 15 | 15 | 15 | 15 | 53 | 53 | 15 | 15 | 15 |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Receiving | 18.5mA | 10.7mA ~ 13.7mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA |
| Current - Transmitting | 17mA ~ 30mA | 18mA ~ 29mA | 17mA ~ 30mA | 17mA ~ 30mA | 17mA ~ 30mA | 85mA | 85mA | 85mA | 85mA | 17mA ~ 30mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 42-WFQFN Exposed Pad | 36-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 85-VFLGA Exposed Pad | 85-VFLGA Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad |
| Supplier Device Package | 42-QFN (5x7) | 36-QFN (5x6) | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) | 85-LGA (6x8) | 85-LGA (6x8) | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) |
