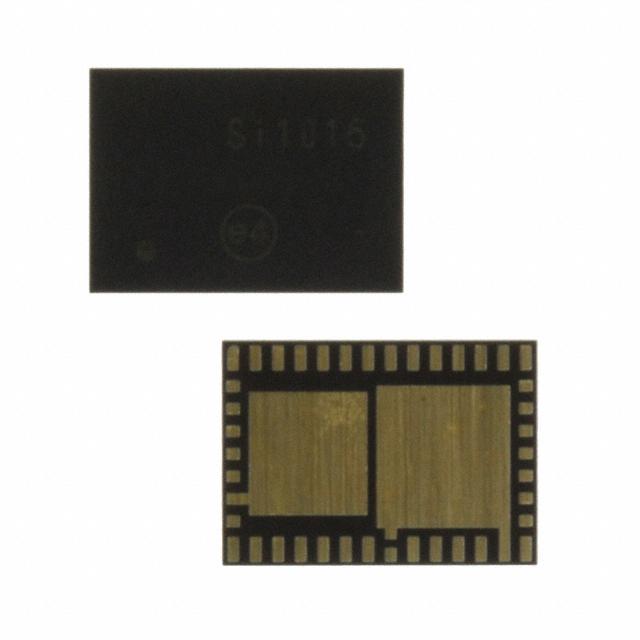

| Part Number | SI1004-C-GM | SI1005-C-GM | SI1000-C-GM | SI1001-C-GM | SI1002-C-GM | SI1003-C-GM |
|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz | General ISM < 1GHz |
| Protocol | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro | EZRadioPro |
| Modulation | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK | FSK, GFSK, OOK |
| Frequency | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz | 240MHz ~ 960MHz |
| Data Rate (Max) | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps | 256Kbps |
| Power - Output | 13dBm | 13dBm | 20dBm | 20dBm | 13dBm | 13dBm |
| Sensitivity | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm | -121dBm |
| Memory Size | 64kB Flash, 4.35kB RAM | 32kB Flash, 4.35kB RAM | 64kB Flash, 4.35kB RAM | 32kB Flash, 4.35kB RAM | 64kB Flash, 4.35kB RAM | 32kB Flash, 4.35kB RAM |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| GPIO | 19 | 19 | 22 | 22 | 22 | 22 |
| Voltage - Supply | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Current - Receiving | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA | 18.5mA |
| Current - Transmitting | 17mA ~ 30mA | 17mA ~ 30mA | 85mA | 85mA | 17mA ~ 30mA | 17mA ~ 30mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad | 42-WFQFN Exposed Pad |
| Supplier Device Package | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) | 42-QFN (5x7) |
