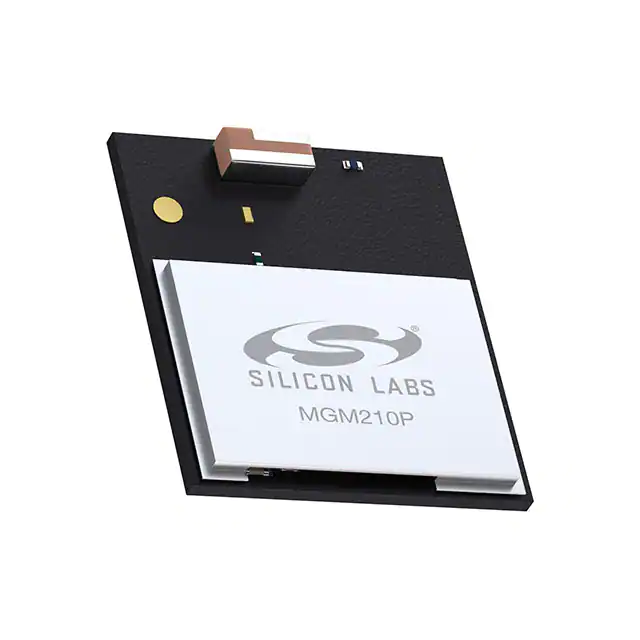

| Part Number | MGM210P032JIA2 | MGM210PB32JIA2 | MGM210PA32JIA2 | MGM210P032JIA2R | MGM210P022JIA2 |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Discontinued at Digi-Key | Active | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.1, Thread, Zigbee® | Bluetooth v5.1, Thread, Zigbee® | Bluetooth v5.1, Thread, Zigbee® | Bluetooth v5.1, Thread, Zigbee® | Bluetooth v5.1, Thread, Zigbee® |
| Modulation | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK |
| Frequency | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 20dBm | 20dBm | 20dBm | 20dBm | 10dBm |
| Sensitivity | -104.5dBm | -104.5dBm | -104.5dBm | -104.5dBm | -104.5dBm |
| Serial Interfaces | ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART | ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART | ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART | ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART | ADC, GPIO, I²C, I²S, IrDA, PWM, SPI, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | EFR32MG21 | EFR32MG21 | EFR32MG21 | EFR32MG21 | EFR32MG21 |
| Memory Size | 1MB Flash, 96kB RAM | 1MB Flash, 96kB RAM | 1MB Flash, 96kB RAM | 1MB Flash, 96kB RAM | 1MB Flash, 96kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.71V ~ 3.8V | 1.71V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 9.1mA ~ 9.9mA | 9.1mA ~ 9.9mA | 9.1mA ~ 9.9mA | 9.1mA ~ 9.9mA | 9.1mA ~ 9.9mA |
| Current - Transmitting | 59.7mA ~ 181.3mA | 59.7mA ~ 181.3mA | 59.7mA ~ 181.3mA | 59.7mA ~ 181.3mA | 16.1mA ~ 34.1mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Package / Case | 31-SMD Module | 31-SMD Module | 31-SMD Module | 31-SMD Module | 31-SMD Module |
