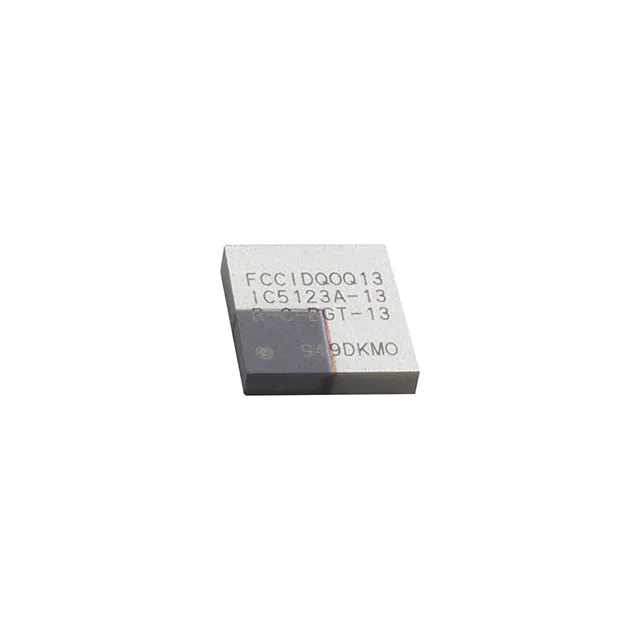

| Part Number | MGM13S12F512GN-V3 | MGM13S12F512GN-V3R | MGM13S02F512GN-V3 | MGM13S12F512GA-V3 | MGM13S12F512GN-V2 |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | - |
| Protocol | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | - |
| Modulation | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | DSSS, GFSK, O-QPSK | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | - |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | - |
| Power - Output | 18dBm | 18dBm | 10dBm | 18dBm | - |
| Sensitivity | -101.5dBm | -101.5dBm | -101.5dBm | -101.5dBm | - |
| Serial Interfaces | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | - |
| Antenna Type | Antenna Not Included | Antenna Not Included | Antenna Not Included | Integrated, Chip | - |
| Utilized IC / Part | EFR32MG13 | EFR32MG13 | EFR32MG13 | EFR32MG13 | - |
| Memory Size | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | - |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | - |
| Current - Receiving | 10.5mA | 10.5mA | 10.5mA | 10.5mA | - |
| Current - Transmitting | 8.9mA | 8.9mA | 8.9mA | 8.9mA | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Package / Case | 51-SMD Module | 51-SMD Module | 51-SMD Module | 51-SMD Module | 51-SMD Module |
