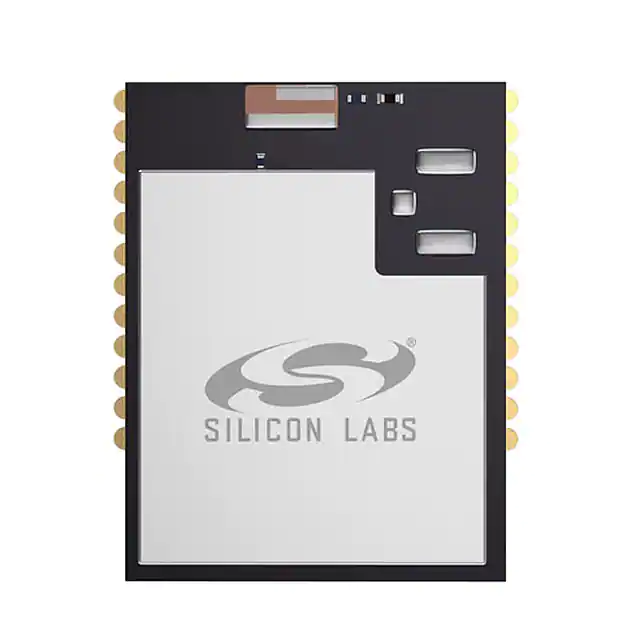

| Part Number | MGM12P32F1024GA-V4 | MGM12P32F1024GE-V4 | MGM12P32F1024GA-V4R | MGM12P02F1024GA-V4 | MGM12P22F1024GA-V4 | MGM12P32F1024GA-V2 |
|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active | Active | Discontinued at Digi-Key |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.0, Thread, Zigbee® | - |
| Modulation | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK | 2-FSK, 4-FSK, DSSS, GFSK, GMSK, O-QPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 17dBm | 17dBm | 17dBm | 10dBm | 10dBm | 17dBm |
| Sensitivity | -105.7dBm | -105.7dBm | -105.7dBm | -102dBm | -105.7dBm | -105dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Integrated, Chip | Antenna Not Included, U.FL | Integrated, Chip | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | EFR32MG12 | EFR32MG12 | EFR32MG12 | EFR32MG12 | EFR32MG12 | EFR32MG12 |
| Memory Size | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM | 1MB Flash, 256kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 10.3mA ~ 12.6mA | 10.3mA ~ 12.6mA | 10.3mA ~ 12.6mA | 10.3mA ~ 12.6mA | 10.3mA ~ 12.6mA | 10.3mA |
| Current - Transmitting | 10mA ~ 121mA | 10mA ~ 121mA | 10mA ~ 121mA | 10mA ~ 121mA | 10mA ~ 121mA | 10mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Package / Case | Module | Module | Module | Module | Module | Module |
