Please send RFQ , we will respond immediately.

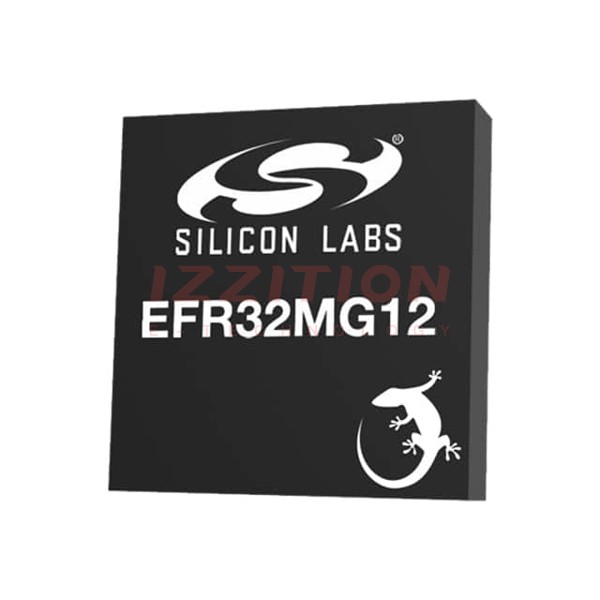

| Part Number | EFR32MG12P132F512GM68-C | EFR32MG12P132F512GM68-CR | EFR32MG12P232F512GM68-C |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Wireless M-Bus, Zigbee® | Bluetooth v5.0, Wireless M-Bus, Zigbee® | Bluetooth v5.0, Wireless M-Bus, Zigbee® |
| Modulation | 2FSK, 2GFSK, 4FSK, 4GFSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK | 2FSK, 2GFSK, 4FSK, 4GFSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK | 2FSK, 2GFSK, 4FSK, 4GFSK, ASK, BPSK, DBPSK, DSSS, GFSK, GMSK, MSK, OOK, OQPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 0dBm | 0dBm | 0dBm |
| Sensitivity | -126.2dBm | -126.2dBm | -126.2dBm |
| Memory Size | 512kB Flash, 128kB RAM | 512kB Flash, 128kB RAM | 512kB Flash, 128kB RAM |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART |
| GPIO | 31 | 31 | 31 |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 8.4mA ~ 10mA | 8.4mA ~ 10mA | 8.4mA ~ 10mA |
| Current - Transmitting | 8.5mA ~ 35.3mA | 8.5mA ~ 35.3mA | 8.5mA ~ 35.3mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad | 68-VFQFN Exposed Pad |
| Supplier Device Package | 68-QFN (8x8) | 68-QFN (8x8) | 68-QFN (8x8) |
