EFR32FG23A020F256GM40-BR
  • Share:

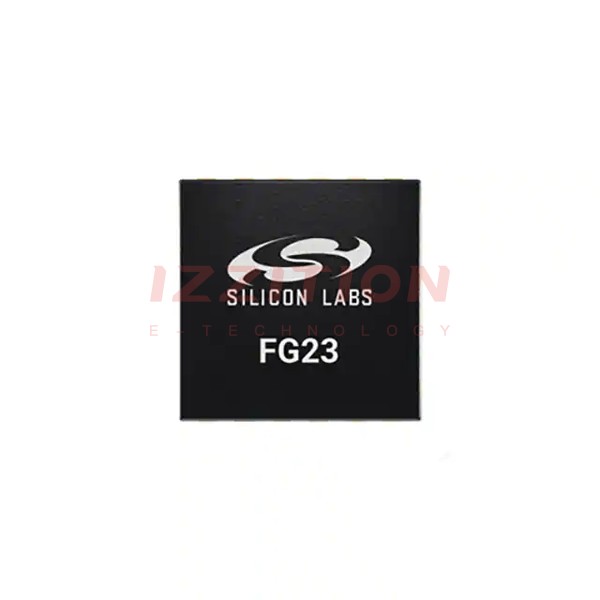

Silicon Labs EFR32FG23A020F256GM40-BR

Manufacturer No:
EFR32FG23A020F256GM40-BR
Manufacturer:
Silicon Labs
Package:
Tape & Reel (TR)
Datasheet:
EFR32FG23A020F256GM40-BR Datasheet
ECAD Model:
-
Description:
IC RF TXRX+MCU ISM<1GHZ 40QFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:TxRx + MCU
RF Family/Standard:General ISM < 1GHz
Protocol:Flex Gecko
Modulation:2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK
Frequency:110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz
Data Rate (Max):2Mbps
Power - Output:20dBm
Sensitivity:-125.8dBm
Memory Size:256kB Flash, 32kB RAM
Serial Interfaces:I²C, I²S, SPI, UART
GPIO:23
Voltage - Supply:1.71V ~ 3.8V
Current - Receiving:3.7mA ~ 9.5mA
Current - Transmitting:8.2mA ~ 90.6mA
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:40-VFQFN Exposed Pad
Supplier Device Package:40-QFN (5x5)
0 Remaining View Similar

In Stock

$3.21
112

Please send RFQ , we will respond immediately.

Similar Products

Part Number EFR32FG23A020F256GM40-BR EFR32FG23A020F256GM48-BR   EFR32FG23A010F256GM40-BR   EFR32FG23A020F256GM40-B
Manufacturer Silicon Labs Silicon Labs Silicon Labs Silicon Labs
Product Status Active Active Active Active
Type TxRx + MCU TxRx + MCU TxRx + MCU TxRx + MCU
RF Family/Standard General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz General ISM < 1GHz
Protocol Flex Gecko Flex Gecko Flex Gecko Flex Gecko
Modulation 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK 2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK
Frequency 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz 110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz
Data Rate (Max) 2Mbps 2Mbps 2Mbps 2Mbps
Power - Output 20dBm 20dBm 14dBm 20dBm
Sensitivity -125.8dBm -125.8dBm -125.8dBm -125.8dBm
Memory Size 256kB Flash, 32kB RAM 256kB Flash, 32kB RAM 256kB Flash, 32kB RAM 256kB Flash, 32kB RAM
Serial Interfaces I²C, I²S, SPI, UART I²C, I²S, SPI, UART I²C, I²S, SPI, UART I²C, I²S, SPI, UART
GPIO 23 31 23 23
Voltage - Supply 1.71V ~ 3.8V 1.71V ~ 3.8V 1.71V ~ 3.8V 1.71V ~ 3.8V
Current - Receiving 3.7mA ~ 9.5mA 3.7mA ~ 9.5mA 3.7mA ~ 9.5mA 3.7mA ~ 9.5mA
Current - Transmitting 8.2mA ~ 90.6mA 8.2mA ~ 90.6mA 8.2mA ~ 90.6mA 8.2mA ~ 90.6mA
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 40-VFQFN Exposed Pad 48-VFQFN Exposed Pad 40-VFQFN Exposed Pad 40-VFQFN Exposed Pad
Supplier Device Package 40-QFN (5x5) 48-QFN (6x6) 40-QFN (5x5) 40-QFN (5x5)
