| Part Number | EFM8SB20F64G-A-QFP32 | EFM8SB20F64G-B-QFP32 | EFM8UB20F64G-A-QFP32 | EFM8SB20F64G-A-QFP32R | EFM8SB20F64G-A-QFN32 |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 25MHz | 25MHz | 48MHz | 25MHz | 25MHz |
| Connectivity | EBI/EMI, I²C, SMBus, SPI, UART/USART | EBI/EMI, I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART, USB | EBI/EMI, I²C, SMBus, SPI, UART/USART | EBI/EMI, I²C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 24 | 24 | 25 | 24 | 24 |
| Program Memory Size | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) | 64KB (64K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 4.25K x 8 | 4.25K x 8 | 4.25K x 8 | 4.25K x 8 | 4.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 2.65V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 23x10b | A/D 23x10b | A/D 20x10b | A/D 23x10b | A/D 23x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

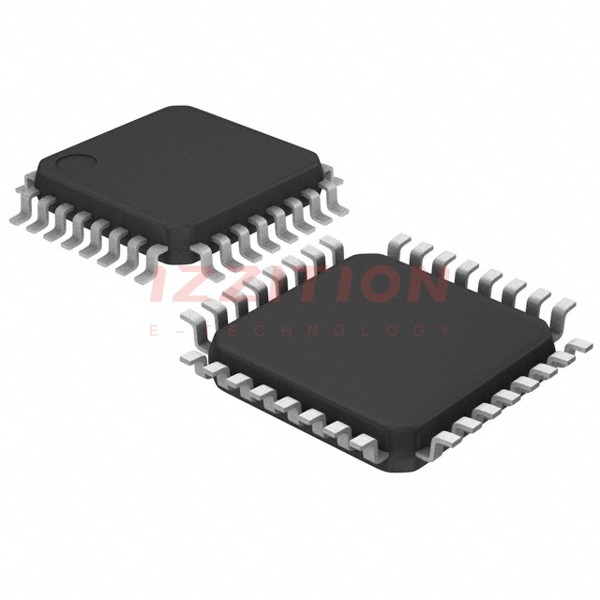

| Package / Case | 32-LQFP | 32-LQFP | 32-LQFP | 32-LQFP | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFP (7x7) | 32-QFP (7x7) | 32-QFP (7x7) | 32-QFP (7x7) | 32-QFN (5x5) |
