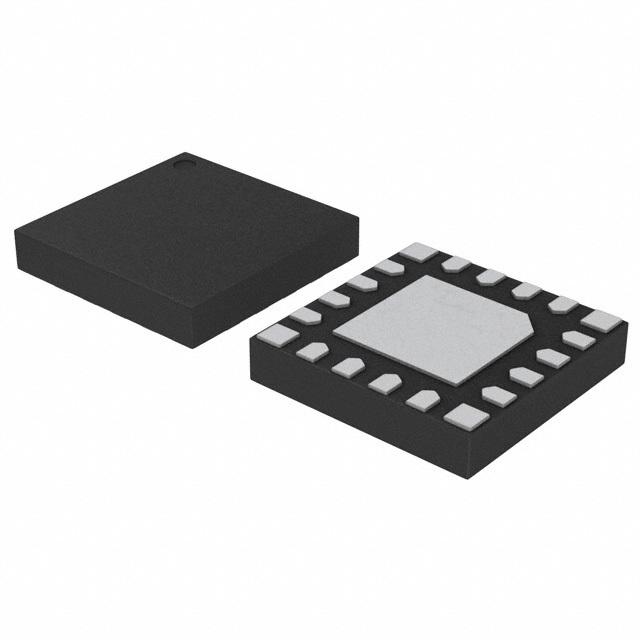

| Part Number | EFM8SB10F8A-A-QFN20R | EFM8SB10F8G-A-QFN20R | EFM8SB10F8A-A-QFN24R | EFM8SB10F8A-A-QFN20 |
|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active |
| Core Processor | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 25MHz | 25MHz | 25MHz | 25MHz |
| Connectivity | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 13 | 16 | 13 | 13 |
| Program Memory Size | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 512 x 8 | 512 x 8 | 512 x 8 | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 9x12b | A/D 9x12b | A/D 10x12b | A/D 9x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-UFQFN Exposed Pad | 20-UFQFN Exposed Pad | 24-WFQFN Exposed Pad | 20-UFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3x3) | 20-QFN (3x3) | 24-QFN (4x4) | 20-QFN (3x3) |
