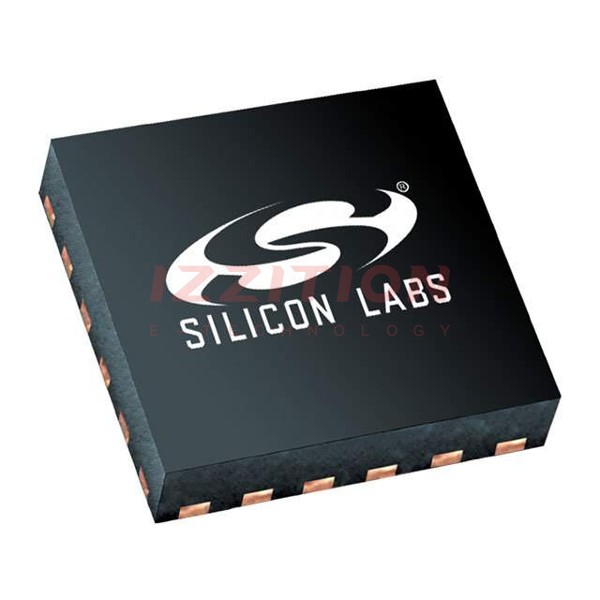

| Part Number | EFM8LB12F32ES0-B-QFN24 | EFM8LB12F32ES0-C-QFN24 | EFM8LB12F32ES0-B-QFN24R | EFM8LB12F32ES1-B-QFN24 | EFM8LB11F32ES0-B-QFN24 |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Core Processor | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 | CIP-51 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 72MHz | 72MHz | 72MHz | 72MHz | 72MHz |
| Connectivity | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART | I²C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 20 | 20 | 20 | 20 | 20 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V |
| Data Converters | A/D 12x14b; D/A 4x12b | A/D 12x14b; D/A 4x12b | A/D 12x14b; D/A 4x12b | A/D 12x14b; D/A 4x12b | A/D 12x14b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad | 32-TQFP | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (3x3) | 32-QFP (7x7) | 24-QFN (3x3) | 24-QFN (3x3) | 24-QFN (3x3) |
