| Part Number | EFM32ZG222F32-QFP48T | EFM32ZG222F32-QFP48 |
|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M0+ | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 24MHz | 24MHz |
| Connectivity | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 37 | 37 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 4K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.98V ~ 3.8V | 1.98V ~ 3.8V |
| Data Converters | A/D 4x12b; D/A 1x12b | A/D 4x12b; D/A 1x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

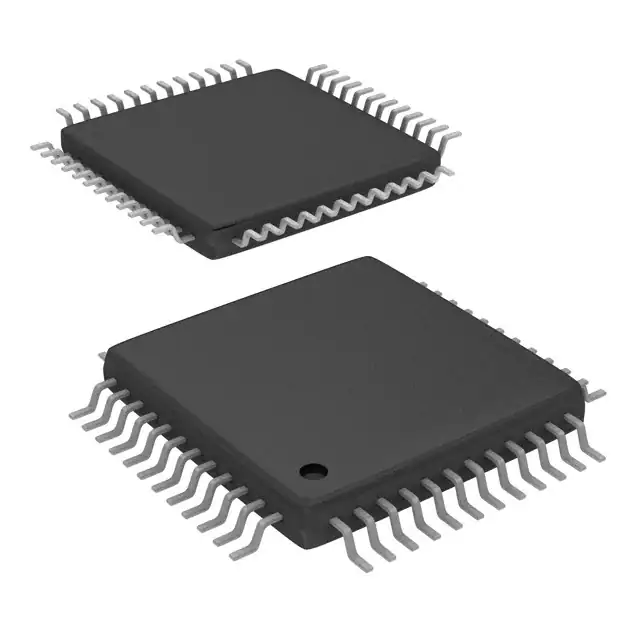

| Package / Case | 48-TQFP | 48-TQFP |
| Supplier Device Package | 48-TQFP (7x7) | 48-TQFP (7x7) |
