| Part Number | EFM32LG360F256G-E-CSP81R | EFM32LG360F256G-E-CSP81 |
|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz |
| Connectivity | I²C, IrDA, SmartCard, SPI, UART/USART, USB OTG | I²C, IrDA, SmartCard, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 65 | 65 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | - | - |
| RAM Size | 32K x 8 | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.98V ~ 3.8V | 1.98V ~ 3.8V |
| Data Converters | A/D 8x12b; D/A 1x12b | A/D 8x12b; D/A 1x12b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

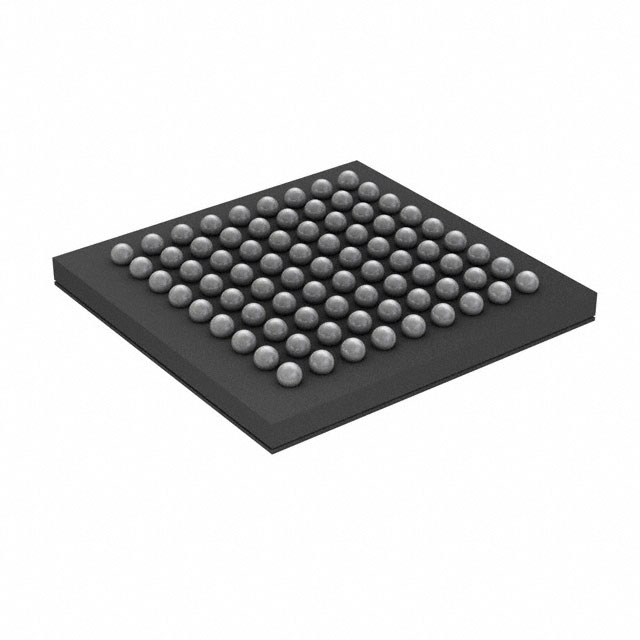

| Package / Case | 81-UFBGA, CSPBGA | 81-UFBGA, CSPBGA |
| Supplier Device Package | 81-CSP (4.35x4.27) | 81-CSP (4.35x4.27) |
