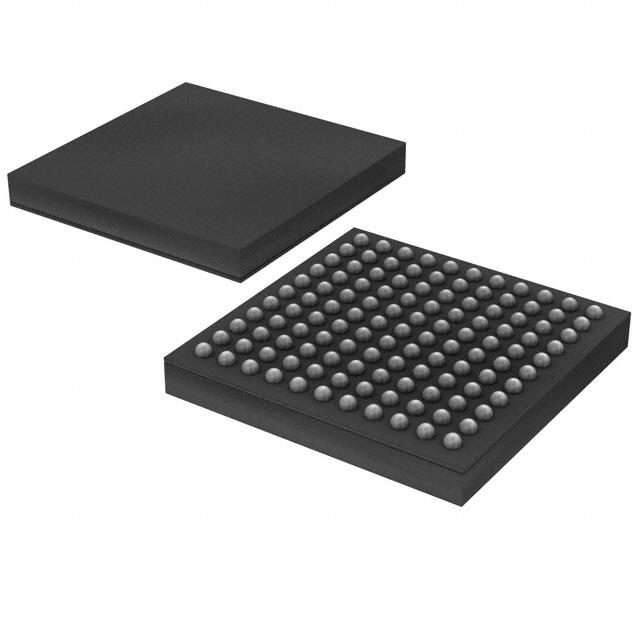

| Part Number | EFM32GG295F512-BGA120 | EFM32GG395F512-BGA120 | EFM32GG895F512-BGA120 | EFM32GG295F512-BGA120T |
|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 48MHz | 48MHz | 48MHz | 48MHz |
| Connectivity | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART, USB | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART | EBI/EMI, I²C, IrDA, SmartCard, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 93 | 93 | 93 | 93 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 128K x 8 | 128K x 8 | 128K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.85V ~ 3.8V | 1.98V ~ 3.8V | 1.85V ~ 3.8V | 1.85V ~ 3.8V |
| Data Converters | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b | A/D 8x12b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 120-VFBGA | 120-VFBGA | 120-VFBGA | 120-VFBGA |
| Supplier Device Package | 120-BGA (7x7) | 120-BGA (7x7) | 120-BGA (7x7) | 120-BGA (7x7) |
