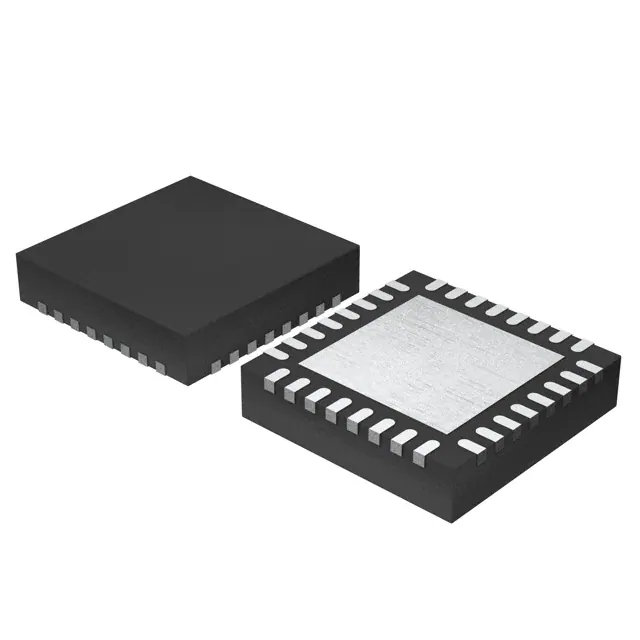

| Part Number | C8051F565-IMR | C8051F567-IMR | C8051F566-IMR | C8051F575-IMR | C8051F565-IQR | C8051F569-IMR | C8051F568-IMR | C8051F585-IMR | C8051F545-IMR | C8051F555-IMR | C8051F560-IMR | C8051F561-IMR | C8051F562-IMR | C8051F563-IMR | C8051F564-IMR | C8051F565-IM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz |
| Connectivity | SMBus (2-Wire/I²C), CANbus, SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, SPI, UART/USART | CANbus, EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, SPI, UART/USART |
| Peripherals | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT |
| Number of I/O | 25 | 25 | 25 | 33 | 25 | 33 | 33 | 40 | 25 | 18 | 25 | 25 | 25 | 25 | 25 | 25 |
| Program Memory Size | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 96KB (96K x 8) | 8KB (8K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 8.25K x 8 | 1.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 | 2.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V |
| Data Converters | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 32x12b | A/D 25x12b | A/D 32x12b | A/D 32x12b | A/D 32x12b | A/D 25x12b | A/D 18x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 32-LQFP | 40-VFQFN Exposed Pad | 40-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 40-QFN (6x6) | 32-LQFP (7x7) | 40-QFN (6x6) | 40-QFN (6x6) | 48-QFN (7x7) | 32-QFN (5x5) | 24-QFN (4x4) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) |
