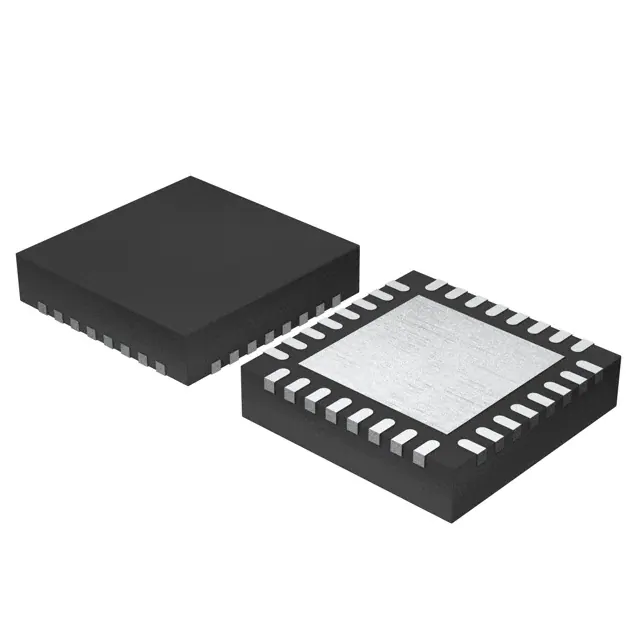

| Part Number | C8051F540-IM | C8051F550-IM | C8051F541-IM | C8051F542-IM | C8051F580-IM | C8051F546-IM | C8051F543-IM | C8051F545-IM | C8051F544-IM | C8051F560-IM | C8051F540-IMR | C8051F540-IQ | C8051F570-IM | C8051F547-IM | C8051F510-IM | C8051F520-IM | C8051F530-IM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Core Processor | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 50MHz | 25MHz | 25MHz |
| Connectivity | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), LINbus, SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | EBI/EMI, SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART | LINbus, SPI, UART/USART | LINbus, SPI, UART/USART |
| Peripherals | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 25 | 18 | 25 | 18 | 40 | 18 | 18 | 25 | 25 | 25 | 25 | 25 | 33 | 18 | 33 | 6 | 16 |
| Program Memory Size | 16KB (16K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 128KB (128K x 8) | 8KB (8K x 8) | 16KB (16K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 32KB (32K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 1.25K x 8 | 2.25K x 8 | 1.25K x 8 | 1.25K x 8 | 8.25K x 8 | 1.25K x 8 | 1.25K x 8 | 1.25K x 8 | 1.25K x 8 | 2.25K x 8 | 1.25K x 8 | 1.25K x 8 | 2.25K x 8 | 1.25K x 8 | 4.25K x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 1.8V ~ 5.25V | 2V ~ 5.25V | 2V ~ 5.25V |
| Data Converters | A/D 25x12b | A/D 18x12b | A/D 25x12b | A/D 18x12b | A/D 32x12b | A/D 18x12b | A/D 18x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 25x12b | A/D 32x12b | A/D 18x12b | A/D 32x12b | A/D 6x12b | A/D 16x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 32-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 48-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 32-LQFP | 40-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 40-VFQFN Exposed Pad | 10-VFDFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) | 24-QFN (4x4) | 32-QFN (5x5) | 24-QFN (4x4) | 48-QFN (7x7) | 24-QFN (4x4) | 24-QFN (4x4) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-QFN (5x5) | 32-LQFP (7x7) | 40-QFN (6x6) | 24-QFN (4x4) | 40-QFN (6x6) | 10-DFN (3x3) | 20-QFN (4x4) |
