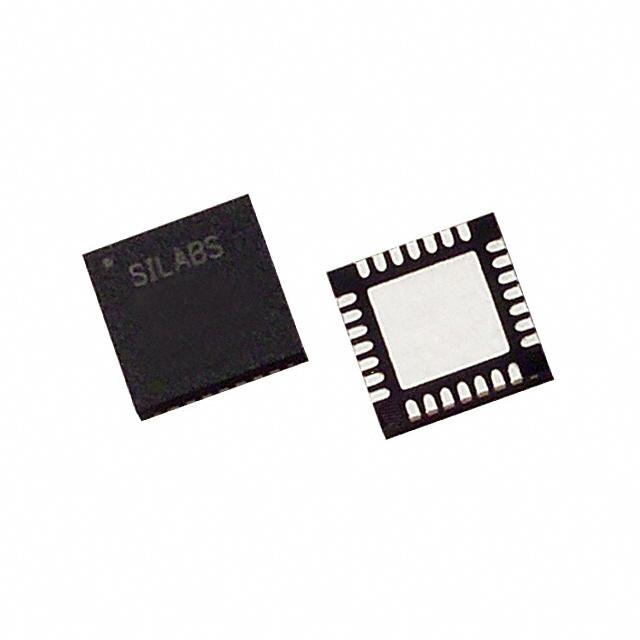

| Part Number | C8051F313-GM | C8051F333-GM | C8051F317-GM | C8051F316-GM | C8051F313-GMR | C8051F343-GM | C8051F303-GM | C8051F311-GM |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 48MHz | 25MHz | 25MHz |
| Connectivity | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART, USB | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART |
| Peripherals | POR, PWM, Temp Sensor, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | POR, PWM, WDT | POR, PWM, Temp Sensor, WDT |
| Number of I/O | 25 | 17 | 21 | 21 | 25 | 25 | 8 | 25 |
| Program Memory Size | 8KB (8K x 8) | 4KB (4K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 8KB (8K x 8) | 32KB (32K x 8) | 8KB (8K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - |
| RAM Size | 1.25K x 8 | 768 x 8 | 1.25K x 8 | 1.25K x 8 | 1.25K x 8 | 2.25K x 8 | 256 x 8 | 1.25K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | A/D 17x10b | - | - | A/D 13x10b | A/D 17x10b | A/D 21x10b | - | A/D 17x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 28-VFQFN Exposed Pad | 32-VFQFN Exposed Pad | 10-VFDFN Exposed Pad | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (5x5) | 20-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) | 28-QFN (5x5) | 32-QFN (5x5) | 11-QFN (3x3) | 28-QFN (5x5) |
