Please send RFQ , we will respond immediately.

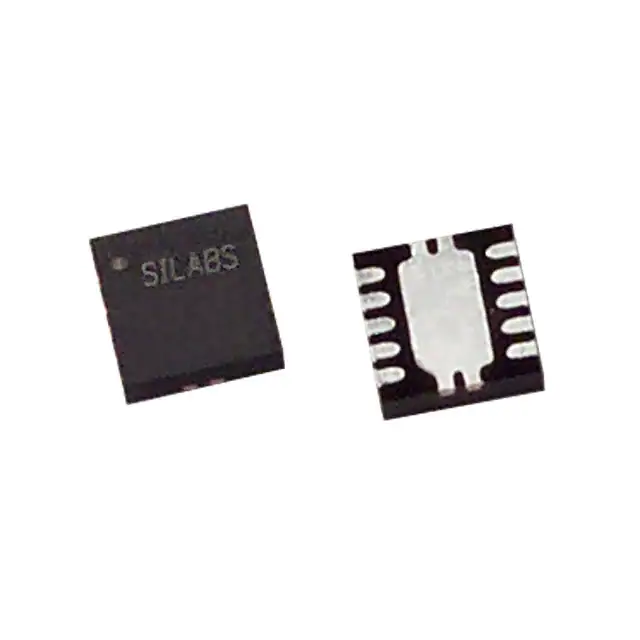

| Part Number | C8051F301-GMR | C8051F311-GMR | C8051F305-GMR | C8051F304-GMR | C8051F303-GMR | C8051F301-GSR | C8051F302-GMR | C8051F331-GMR | C8051F321-GMR | C8051F300-GMR | C8051F301-GM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Last Time Buy | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs |
| Core Processor | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 | 8051 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz | 25MHz |
| Connectivity | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART | SMBus (2-Wire/I²C), SPI, UART/USART, USB | SMBus (2-Wire/I²C), UART/USART | SMBus (2-Wire/I²C), UART/USART |
| Peripherals | POR, PWM, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT | POR, PWM, Temp Sensor, WDT | POR, PWM, WDT |
| Number of I/O | 8 | 25 | 8 | 8 | 8 | 8 | 8 | 17 | 21 | 8 | 8 |
| Program Memory Size | 8KB (8K x 8) | 16KB (16K x 8) | 2KB (2K x 8) | 4KB (4K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 8KB (8K x 8) | 16KB (16K x 8) | 8KB (8K x 8) | 8KB (8K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - | - | - | - | - |
| RAM Size | 256 x 8 | 1.25K x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 256 x 8 | 768 x 8 | 2.25K x 8 | 256 x 8 | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Data Converters | - | A/D 17x10b | - | - | - | - | A/D 8x8b | - | A/D 13x10b | A/D 8x8b | - |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad | 28-VFQFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad | 14-SOIC (0.154", 3.90mm Width) | 10-VFDFN Exposed Pad | 20-VFQFN Exposed Pad | 28-VFQFN Exposed Pad | 10-VFDFN Exposed Pad | 10-VFDFN Exposed Pad |
| Supplier Device Package | 11-QFN (3x3) | 28-QFN (5x5) | 11-QFN (3x3) | 11-QFN (3x3) | 11-QFN (3x3) | 14-SOIC | 11-QFN (3x3) | 20-MLP (4x4) | 28-MLP (5x5) | 11-QFN (3x3) | 11-QFN (3x3) |
