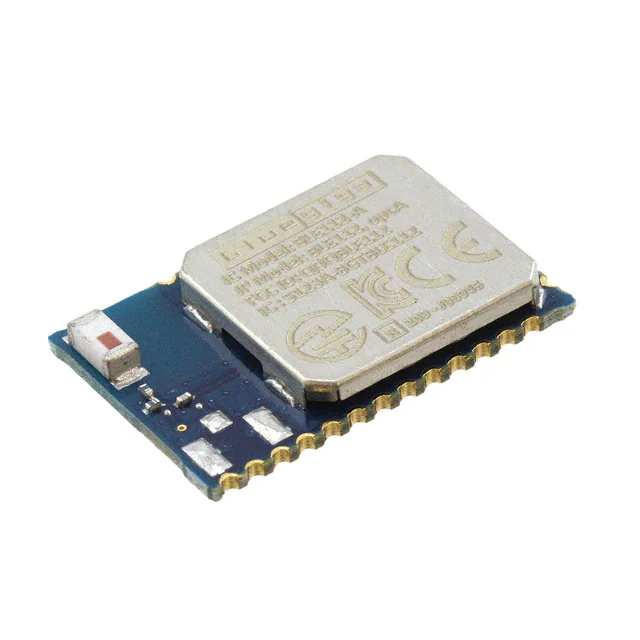

| Part Number | BLE112-E-V1 | BLE112-E-V1C | BLE112-A-V1 |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.0 | Bluetooth v4.0 | Bluetooth v4.0 |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | - | - | 2Mbps |
| Power - Output | 3dBm | 3dBm | 3dBm |
| Sensitivity | -91dBm | -91dBm | -85dBm |
| Serial Interfaces | SPI, UART | SPI, UART | SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Antenna Not Included, U.FL | Integrated, Chip |
| Utilized IC / Part | CC2540 | CC2540 | CC2540 |
| Memory Size | - | - | 128kB Flash, 8kB SRAM |
| Voltage - Supply | 3.6V | 3.6V | 2V ~ 3.6V |
| Current - Receiving | - | - | 25mA |
| Current - Transmitting | - | - | 36mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | Module | Module | Module |
