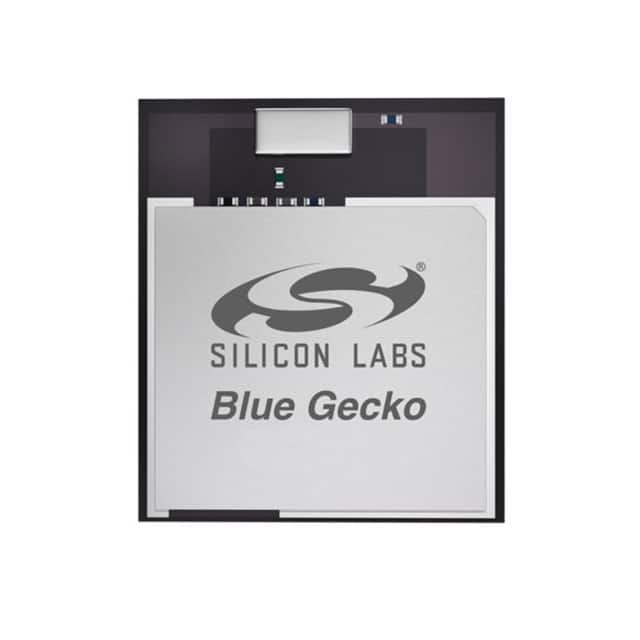

| Part Number | BGX13S22GA-V31 | BGX13S22GA-V31R | BGX13S22GA-V21 |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Obsolete |
| RF Family/Standard | Bluetooth | Bluetooth | - |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | - |
| Modulation | GFSK | GFSK | - |
| Frequency | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz | - |
| Data Rate | 2Mbps | 2Mbps | - |
| Power - Output | 8dBm | 8dBm | - |
| Sensitivity | -94.1dBm | -94.1dBm | - |
| Serial Interfaces | UART, USART | UART, USART | - |
| Antenna Type | Integrated, Chip | Integrated, Chip | - |
| Utilized IC / Part | BGX13S | BGX13S | - |
| Memory Size | - | - | - |
| Voltage - Supply | 2.4V ~ 3.8V | 2.4V ~ 3.8V | - |
| Current - Receiving | 3.5mA ~ 7mA | 3.5mA ~ 7mA | - |
| Current - Transmitting | 3.5mA ~ 7mA | 3.5mA ~ 7mA | - |
| Mounting Type | Surface Mount | Surface Mount | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Package / Case | 51-SMD Module | 51-SMD Module | - |
