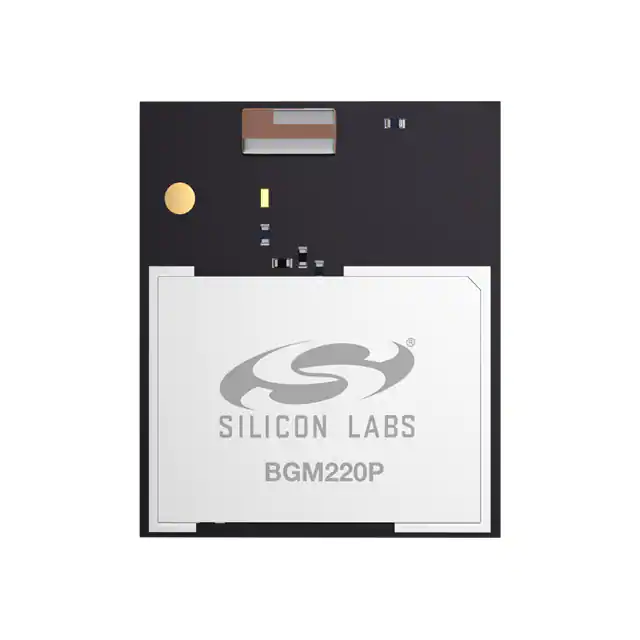

| Part Number | BGM220PC22HNA2R | BGM220PC22HNA2 |
|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs |
| Product Status | Active | Active |
| RF Family/Standard | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.2 | Bluetooth v5.2 |
| Modulation | GFSK | GFSK |
| Frequency | 2.4GHz ~ 2.4835GHz | 2.4GHz ~ 2.4835GHz |
| Data Rate | 2Mbps | 2Mbps |
| Power - Output | 8dBm | 8dBm |
| Sensitivity | -98.9dBm | -98.9dBm |
| Serial Interfaces | ADC, I²C, I²S, PWM, SPI, IrDA, UART, USART | ADC, I²C, I²S, PWM, SPI, IrDA, UART, USART |
| Antenna Type | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | EFR32BG22 | EFR32BG22 |
| Memory Size | 512kB Flash, 32kB RAM | 512kB Flash, 32kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 4.3mA ~ 4.8mA | 4.3mA ~ 4.8mA |
| Current - Transmitting | 4.8mA ~ 10.8mA | 4.8mA ~ 10.8mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Package / Case | 31-SMD Module | 31-SMD Module |
