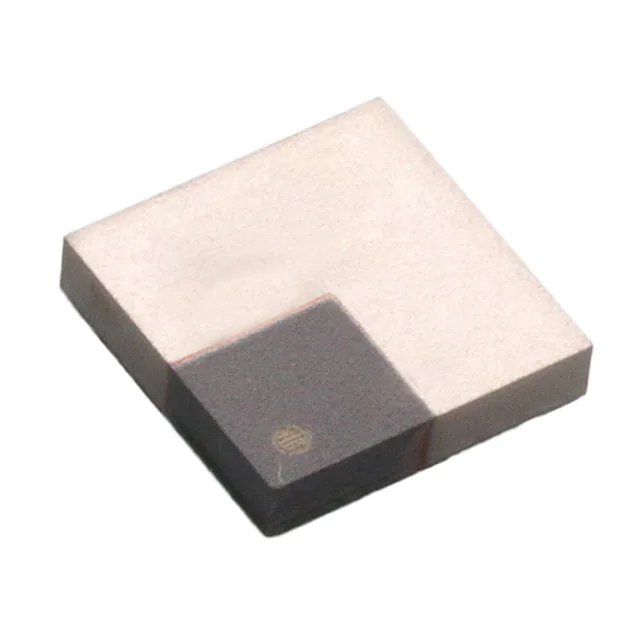

| Part Number | BGM13S32F512GA-V3 | BGM13S32F512GN-V3 | BGM13S32F512GA-V3R | BGM13S22F512GA-V3 | BGM13S32F512GA-V2 |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Active | Active | Active | Active | Discontinued at Digi-Key |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.0 |
| Modulation | GFSK | GFSK | GFSK | GFSK | GFSK |
| Frequency | 2.4GHz ~ 2.4835GHz | 2.4GHz | 2.4GHz | 2.4GHz ~ 2.4835GHz | 2.4GHz |
| Data Rate | 2Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 19dBm | 18dBm | 18dBm | 8dBm | 18dBm |
| Sensitivity | -102.1dBm | -102.1dBm | -102.1dBm | -102.1dBm | -90.2dBm |
| Serial Interfaces | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART | I²C, I²S, IrDA, SPI, UART |
| Antenna Type | Integrated, Chip | Antenna Not Included | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | EFR32BG13 | EFR32BG13 | EFR32BG13 | EFR32BG13 | EFR32BG13 |
| Memory Size | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM | 512kB Flash, 64kB RAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 9.4mA ~ 11.5mA | 10.5mA | 10.5mA | 9.4mA ~ 11.5mA | 10.5mA |
| Current - Transmitting | 8.9mA ~ 122.7mA | 8.9mA | 8.9mA | 8.9mA ~ 122.7mA | 8.9mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Package / Case | 51-SMD Module | 51-SMD Module | 51-SMD Module | 51-SMD Module | Module |
