Please send RFQ , we will respond immediately.

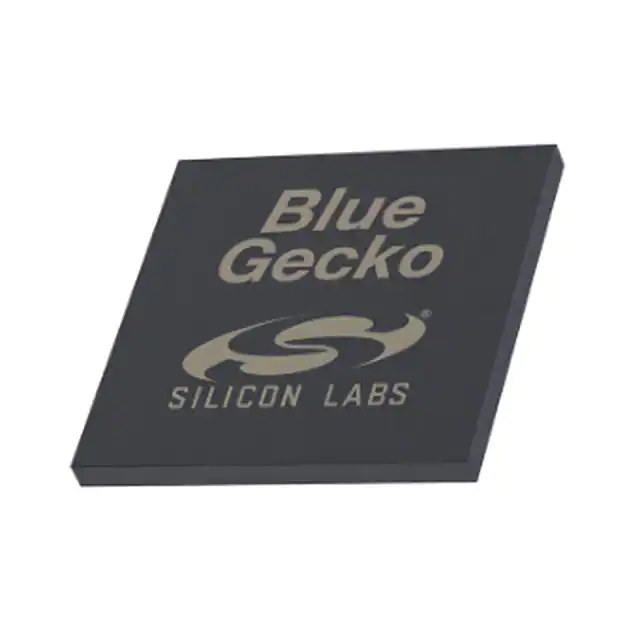

| Part Number | BGM123N256V1R | BGM121N256V1R | BGM123N256V1 |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v4.2 | Bluetooth v4.2 | Bluetooth v4.2 |
| Modulation | GFSK | GFSK | GFSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 1Mbps | 1Mbps | 1Mbps |
| Power - Output | 8dBm | 8dBm | 8dBm |
| Sensitivity | -90dBm | -90dBm | -90dBm |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | - | - | EFR32BG |
| Memory Size | 256kB Flash, 32kB RAM | 256kB Flash, 32kB RAM | 256kB Flash, 32kB RAM |
| Voltage - Supply | 1.85V ~ 3.8V | 1.85V ~ 3.8V | 1.85V ~ 3.8V |
| Current - Receiving | 9mA | 9mA | 9mA |
| Current - Transmitting | 8.2mA | 8.2mA | 8.2mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 56-SMD Module | 56-SMD Module | 56-SMD Module |
