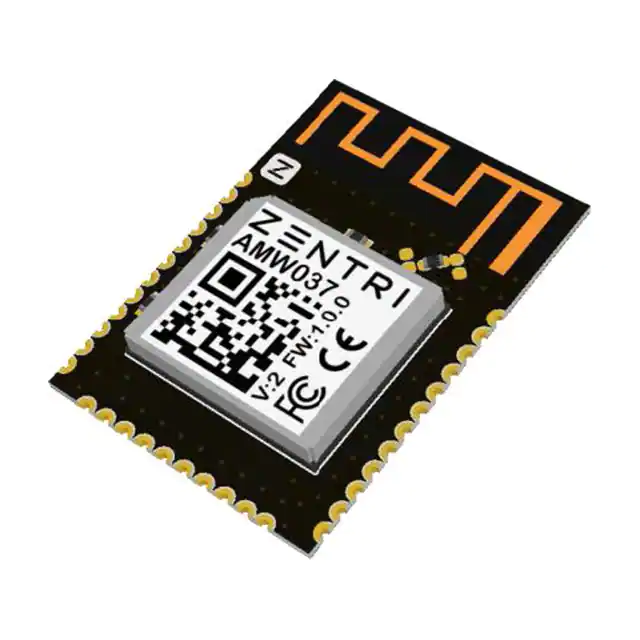

| Part Number | AMW037-2.2.14R | AMW007-2.2.14R | AMW037-2.2.14 |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | CCK, DSSS, OFDM | CCK, DSSS, OFDM | CCK, DSSS, OFDM |
| Frequency | 2.412GHz ~ 2.484GHz | 2.412GHz ~ 2.484GHz | 2.412GHz ~ 2.484GHz |
| Data Rate | 72.2Mbps | 72.2Mbps | 72.2Mbps |
| Power - Output | 20dBm | 20dBm | 20dBm |
| Sensitivity | -98dBm | -98dBm | -98dBm |
| Serial Interfaces | ADC, GPIO, PWM, UART | ADC, GPIO, PWM, UART | ADC, GPIO, PWM, UART |
| Antenna Type | Integrated, Trace | Integrated, Trace | Integrated, Trace |
| Utilized IC / Part | AMW007 | AMW007 | AMW007 |
| Memory Size | 2MB Flash | 2MB Flash | 2MB Flash |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Current - Receiving | 50mA | 50mA | 50mA |
| Current - Transmitting | 100mA ~ 200mA | 100mA ~ 200mA | 100mA ~ 200mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Package / Case | 44-SMD Module | 38-SMD Module | 44-SMD Module |
