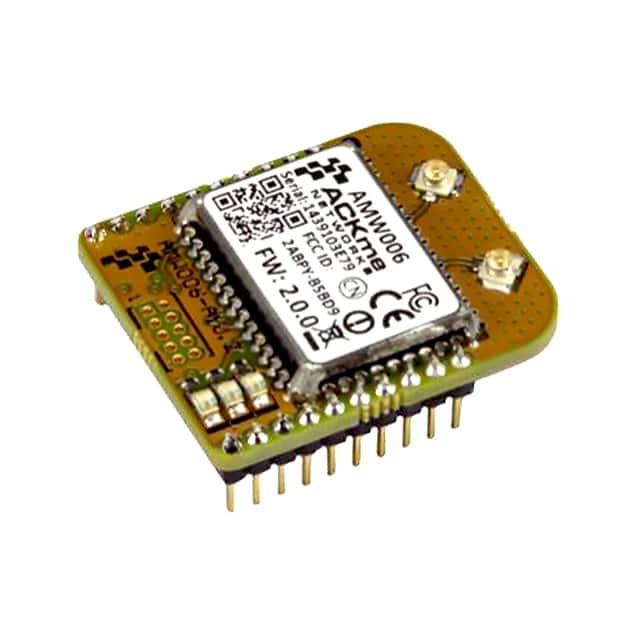

| Part Number | AMW006-A1WR | AMW006-A1UR | AMW006-A1W |
|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Not For New Designs | Active | Discontinued at Digi-Key |
| RF Family/Standard | WiFi | WiFi | WiFi |
| Protocol | 802.11b/g/n | 802.11b/g/n | 802.11b/g/n |
| Modulation | - | - | - |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | 54Mbps | 54Mbps | 54Mbps |
| Power - Output | 18dBm | 18dBm | 18dBm |
| Sensitivity | -94dBm | -94dBm | -94dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Integrated, Wire Antenna | Antenna Not Included, U.FL | Integrated, Wire Antenna |
| Utilized IC / Part | - | - | - |
| Memory Size | 1.5MB Flash, 96kB RAM | 1.5MB Flash, 96kB RAM | 1.5MB Flash, 96kB RAM |
| Voltage - Supply | 3.3V | 3.3V | 3.3V |
| Current - Receiving | 5.7mA | 5.7mA | 5.7mA |
| Current - Transmitting | 11.4mA | 11.4mA | 11.4mA |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Operating Temperature | -30°C ~ 85°C | -30°C ~ 85°C | -30°C ~ 85°C |
| Package / Case | Module | Module | Module |
