Please send RFQ , we will respond immediately.

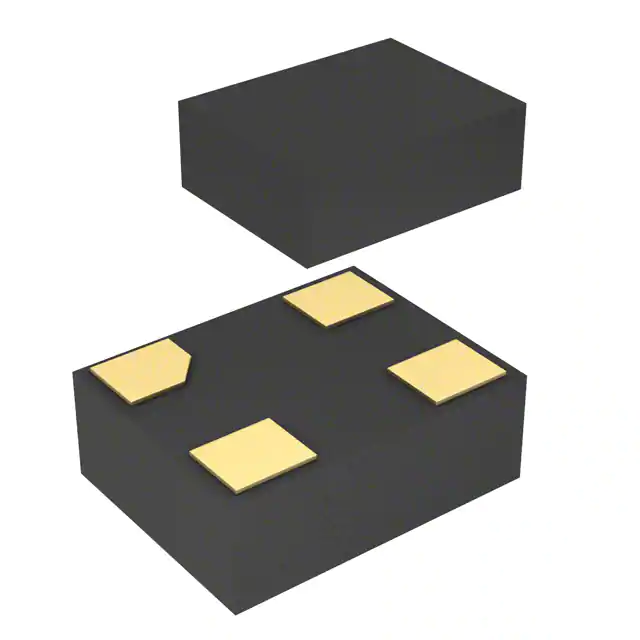

| Part Number | 501EAA48M0000DAFR | 501EAA48M0000DAGR | 501EAA48M0000BAFR | 501EAA48M0000CAFR | 501EAA48M0000DAF |
|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® |
| Frequency | 48 MHz | 48 MHz | 48 MHz | 48 MHz | 48 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Voltage - Supply | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Frequency Stability | ±50ppm | ±50ppm | ±50ppm | ±50ppm | ±50ppm |
| Absolute Pull Range (APR) | - | - | - | - | - |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 85°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - |
| Current - Supply (Max) | 2.5mA | 2.5mA | 2.5mA | 2.5mA | 2.5mA |
| Ratings | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
