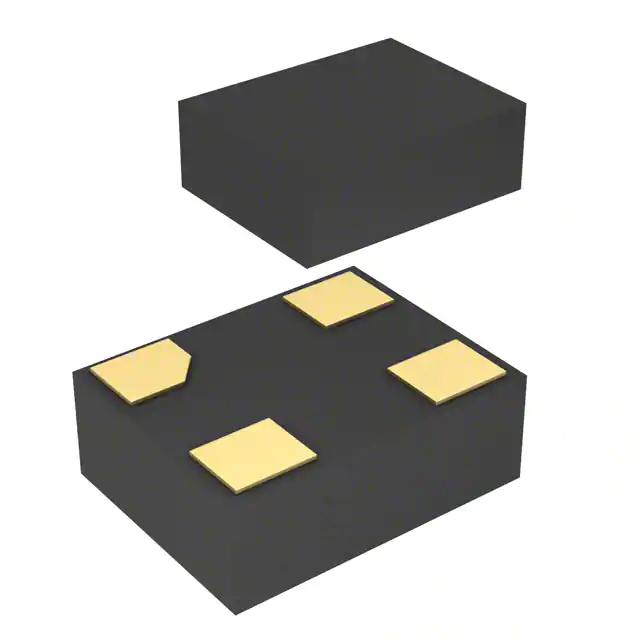

| Part Number | 501BCAM032768DAG | 501HCAM032768DAG | 501BCAM032768DAGR | 501BCAM032768BAG | 501BCAM032768CAG | 501BCAM032768DAF |
|---|---|---|---|---|---|---|
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Base Resonator | MEMS | MEMS | MEMS | MEMS | MEMS | MEMS |
| Type | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® | CMEMS® |
| Frequency | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz | 32.768 kHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Voltage - Supply | 3.3V | 1.7V ~ 3.6V | 3.3V | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm | ±20ppm |
| Absolute Pull Range (APR) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - | - | - | - | - | - |
| Current - Supply (Max) | 2.5mA | 4.9mA | 2.5mA | 2.5mA | 2.5mA | 2.5mA |
| Ratings | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) | 0.035" (0.90mm) |
