Siemens-6EP44377FB003CX0 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	DC
Number of Outputs:	1
AC Voltage - Input:	-
DC Voltage - Input (Min):	20.4V
DC Voltage - Input (Max):	30V
Voltage - Output 1:	23.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	10A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	98%
Operating Temperature:	-25°C ~ 70°C
Features:	Adjustable Output, IP20
Size / Dimension:	4.92" L x 1.77" W x 5.31" H (125.0mm x 45.0mm x 135.0mm)
Approval Agency:	CE, CSA, cULus, UL
Standard Number:	60950-1; UL 508

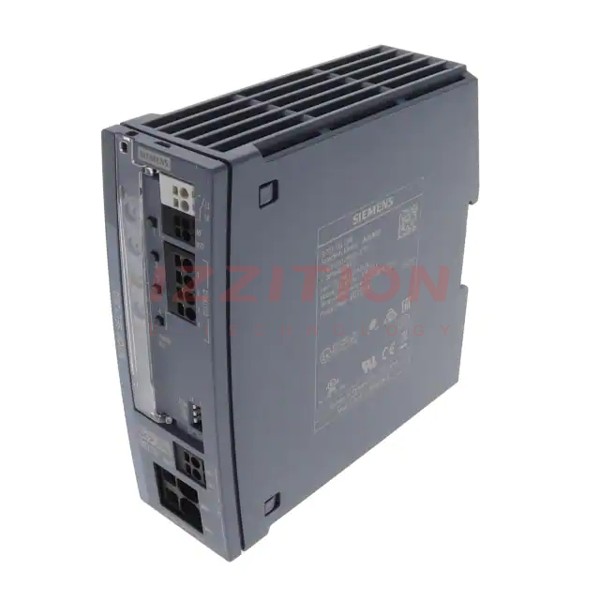

Siemens 6EP44377FB003CX0
