Siemens-6EP34337SB000AX0 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	AC or DC
Number of Outputs:	1
AC Voltage - Input:	400 ~ 500 VAC, 323 ~ 576 VAC
DC Voltage - Input (Min):	450V
DC Voltage - Input (Max):	600V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	5A
Power (Watts):	120W
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	91.2%
Operating Temperature:	-25°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20
Size / Dimension:	4.92" L x 1.38" W x 5.31" H (125.0mm x 35.0mm x 135.0mm)
Approval Agency:	CB, cCSAus, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

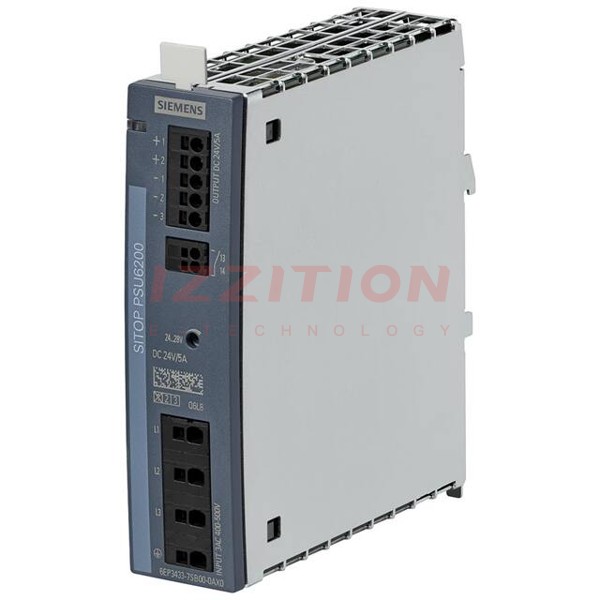

Siemens 6EP34337SB000AX0
