Siemens-6EP33306SB000AY0 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	AC or DC
Number of Outputs:	1
AC Voltage - Input:	100 ~ 240 VAC, 85 ~ 264 VAC
DC Voltage - Input (Min):	110V
DC Voltage - Input (Max):	300V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	600mA
Power (Watts):	14W
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	81%
Operating Temperature:	-25°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Size / Dimension:	2.09" L x 0.71" W x 3.54" H (53.0mm x 18.0mm x 90.0mm)
Approval Agency:	CB, cCSAus, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

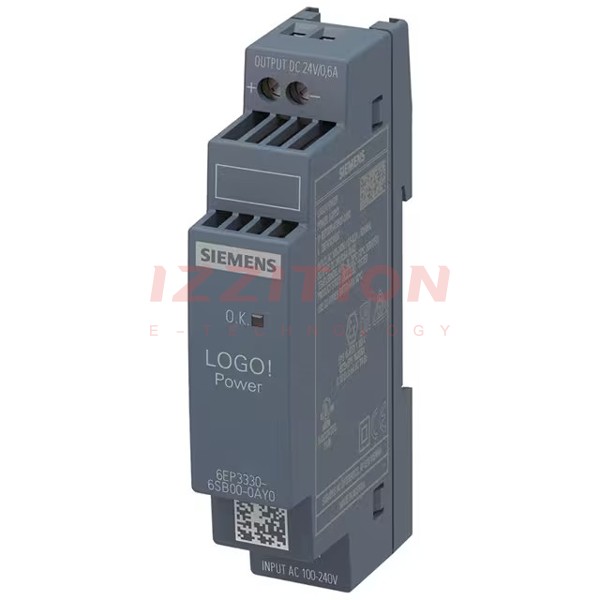

Siemens 6EP33306SB000AY0
