Siemens-6EP19312EC42 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	DC
Number of Outputs:	1
AC Voltage - Input:	-
DC Voltage - Input (Min):	22V
DC Voltage - Input (Max):	29V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	15A
Power (Watts):	360W
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	96.2%
Operating Temperature:	-25°C ~ 60°C
Features:	Adjustable Output, IP20
Size / Dimension:	4.92" L x 4.02" W x 4.92" H (125.0mm x 102.0mm x 125.0mm)
Approval Agency:	CE, CSA, cULus, UL
Standard Number:	508

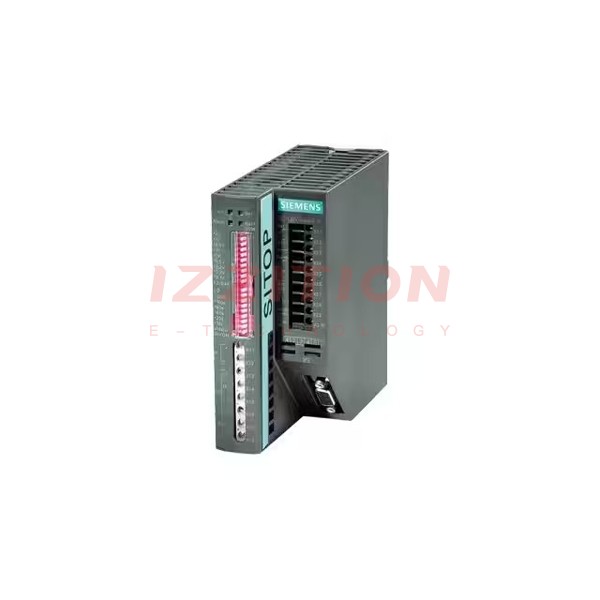

Siemens 6EP19312EC42
