Siemens-6EP13362BA10 - AC DC Converters Product Specifications and Latest Quotes

Type:	Enclosed
Number of Outputs:	1
Voltage - Input:	85 ~ 176 VAC, 132 ~ 264 VAC
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output 1:	20 A
Current - Output 2:	-
Current - Output 3:	-
Current - Output 4:	-
Current - Output 5:	-
Current - Output 6:	-
Power (Watts):	480W
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Isolation:	-
Efficiency:	90%
Operating Temperature:	0°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Mounting Type:	Chassis Mount
Size / Dimension:	5.91" L x 4.53" W x 5.71" H (150.0mm x 115.0mm x 145.0mm)
Approval Agency:	CB, cCSAus, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

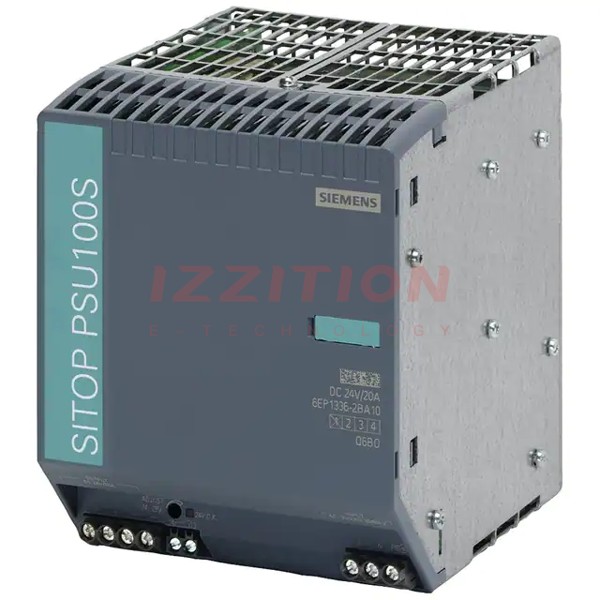

Siemens 6EP13362BA10
