Siemens-6EP13342BA20 - AC DC Converters Product Specifications and Latest Quotes

Type:	Enclosed
Number of Outputs:	1
Voltage - Input:	85 ~ 176 VAC, 132 ~ 264 VAC
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output 1:	10 A
Current - Output 2:	-
Current - Output 3:	-
Current - Output 4:	-
Current - Output 5:	-
Current - Output 6:	-
Power (Watts):	240W
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Isolation:	-
Efficiency:	90%
Operating Temperature:	-25°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Mounting Type:	Chassis Mount
Size / Dimension:	4.72" L x 2.76" W x 4.92" H (120.0mm x 70.0mm x 125.0mm)
Approval Agency:	CB, cCSAus, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

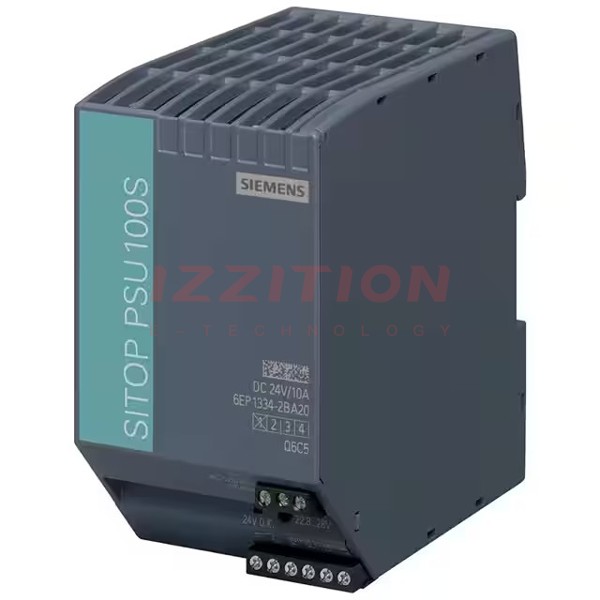

Siemens 6EP13342BA20
