Siemens-6EP13321LB00 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	AC
Number of Outputs:	1
AC Voltage - Input:	93 ~ 132 VAC, 187 ~ 264 VAC
DC Voltage - Input (Min):	-
DC Voltage - Input (Max):	-
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	2.5A
Power (Watts):	60W
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	85%
Operating Temperature:	0°C ~ 60°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Size / Dimension:	4.72" L x 1.28" W x 4.92" H (120.0mm x 32.5mm x 125.0mm)
Approval Agency:	CB, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

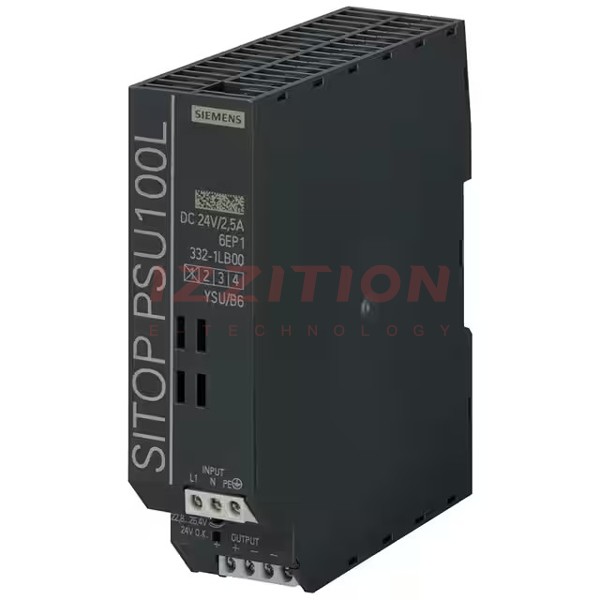

Siemens 6EP13321LB00
