Siemens-6EP13225BA10 - Industrial, DIN Rail Power Supplies Product Specifications and Latest Quotes

Input Type:	AC or DC
Number of Outputs:	1
AC Voltage - Input:	100 ~ 230 VAC, 85 ~ 264 VAC
DC Voltage - Input (Min):	110V
DC Voltage - Input (Max):	300V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output (Max):	6.5A
Power (Watts):	78W
Voltage - Isolation:	-
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Efficiency:	86%
Operating Temperature:	-20°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Size / Dimension:	3.94" L x 2.07" W x 3.15" H (100.0mm x 52.5mm x 80.0mm)
Approval Agency:	CB, cCSAus, CE, CSA, cUL, cULus, UL
Standard Number:	60950-1; UL 508

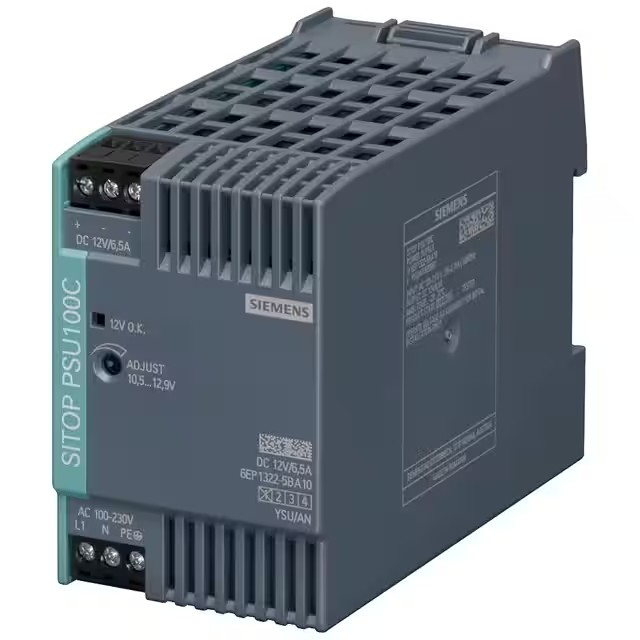

Siemens 6EP13225BA10
