Siemens-6EP13221LD00 - AC DC Converters Product Specifications and Latest Quotes

Type:	Enclosed
Number of Outputs:	1
Voltage - Input:	85 ~ 264 VAC
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output 1:	8.3 A
Current - Output 2:	-
Current - Output 3:	-
Current - Output 4:	-
Current - Output 5:	-
Current - Output 6:	-
Power (Watts):	100W
Applications:	Hazardous Locations, Industrial, ITE (Commercial)
Voltage - Isolation:	-
Efficiency:	84%
Operating Temperature:	-10°C ~ 70°C (With Derating)
Features:	Adjustable Output, IP20, Universal Input
Mounting Type:	Chassis Mount
Size / Dimension:	1.50" L x 3.82" W x 6.22" H (38.0mm x 97.0mm x 158.0mm)
Approval Agency:	CB, CE, CSA, cUL, cULus, cURus, UL
Standard Number:	60950-1; UL 508

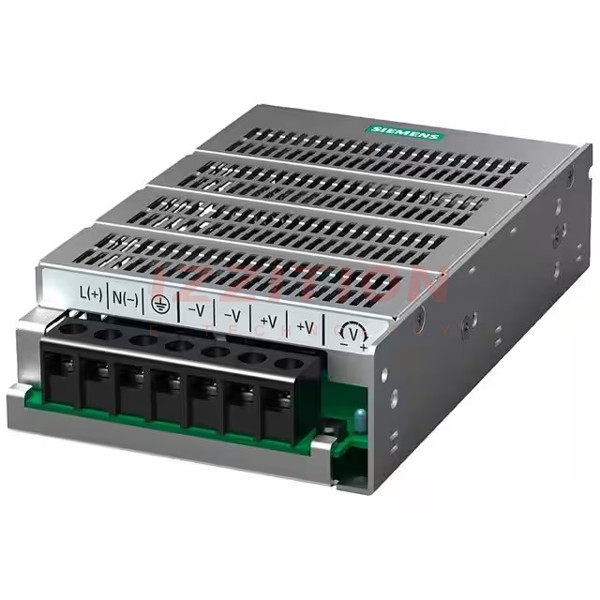

Siemens 6EP13221LD00
