ZL6105ALAFTKR5546

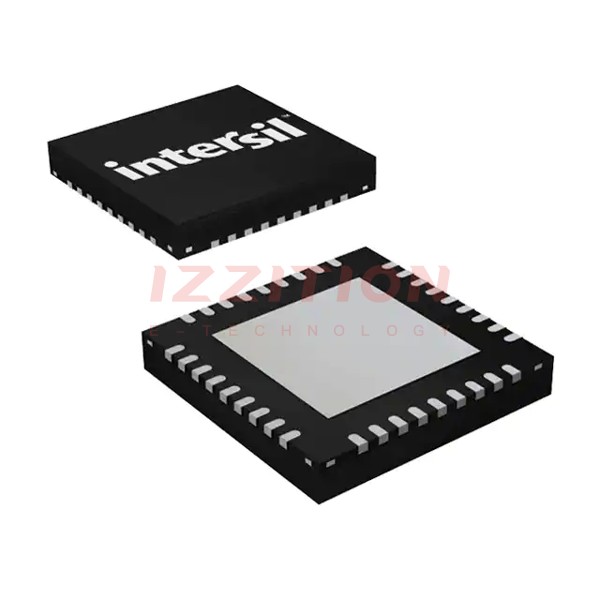

ZL6105ALAFTKR5546 Image
×
Favorite
Compare
Add to RFQ
Share:
Renesas Electronics America Inc ZL6105ALAFTKR5546
Manufacturer No:
ZL6105ALAFTKR5546
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
ZL6105ALAFTKR5546 Datasheet
ECAD Model:
-
Description:
IC REG CTRLR BUCK PMBUS 36QFN
Delivery:
Payment:
Product Attributes
Output Type:
Transistor Driver
Function:
Step-Down
Output Configuration:
Positive
Topology:
Buck
Number of Outputs:
1
Output Phases:
1
Voltage - Supply (Vcc/Vdd):
3V ~ 5V
Frequency - Switching:
200kHz ~ 1.4MHz
Duty Cycle (Max):
95%
Synchronous Rectifier:
Yes
Clock Sync:
Yes
Serial Interfaces:
I²C, PMBus, SMBus
Control Features:
Current Limit, Enable, Power Good, Soft Start, Tracking
Operating Temperature:
-40°C ~ 85°C (TA)
Mounting Type:
Surface Mount
Package / Case:
36-VFQFN Exposed Pad
Supplier Device Package:
36-QFN (6x6)
0
Remaining
View Similar
In Stock
UnitPrice:
-
Quantity:
443
Please send RFQ , we will respond immediately.
