Please send RFQ , we will respond immediately.
| Part Number | ZL2103ALAFT | ZL2103ALAFTK | ZL2101ALAFT | ZL2103ALAF |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck |
| Output Type | Programmable | Programmable | Adjustable (Programmable) | Programmable |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 14V | 14V | 14V | 14V |
| Voltage - Output (Min/Fixed) | 0.6V | 0.6V | 0.6V (1.2V, 1.5V, 3.3V) | 0.6V |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V |
| Current - Output | 3A | 3A | 6A | 3A |
| Frequency - Switching | 200kHz ~ 1MHz | 200kHz ~ 1MHz | 200kHz ~ 1MHz | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

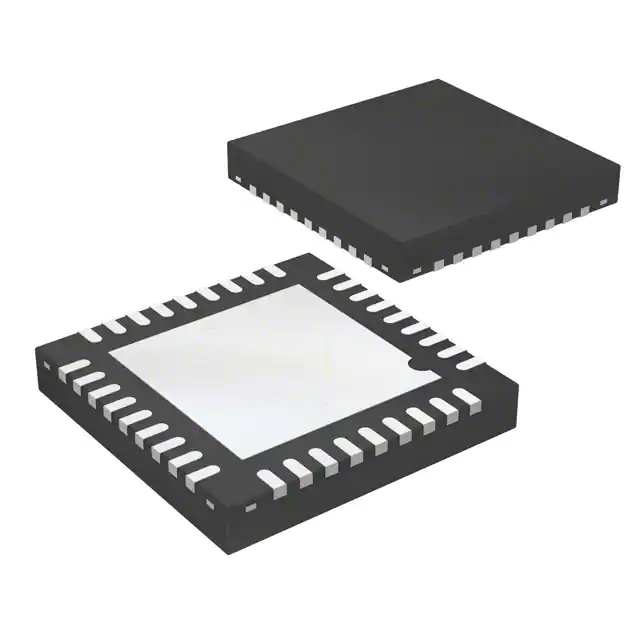

| Package / Case | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad | 36-VFQFN Exposed Pad |
| Supplier Device Package | 36-QFN (6x6) | 36-QFN (6x6) | 36-QFN (6x6) | 36-QFN (6x6) |
