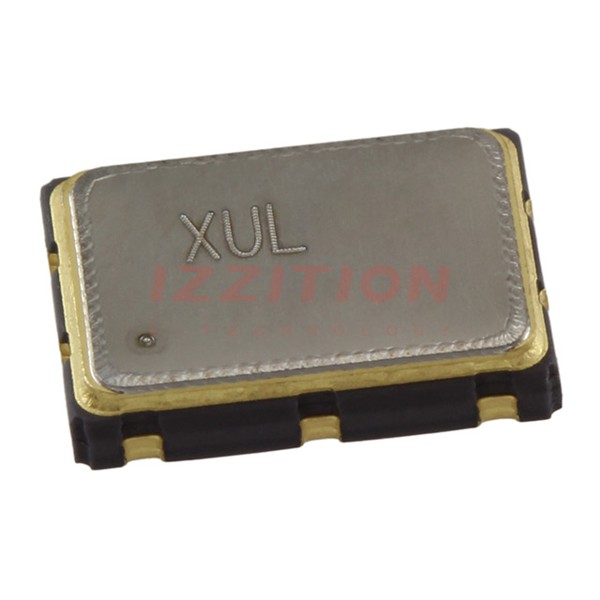

| Part Number | XUL736100.000JU6I | XUL736150.000JU6I | XUP736100.000JU6I |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| Base Resonator | Crystal | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) | XO (Standard) |
| Frequency | 100 MHz | 150 MHz | 100 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVDS | LVDS | LVPECL |
| Voltage - Supply | 3.3V | 3.3V | 3.3V |
| Frequency Stability | ±25ppm | ±25ppm | ±25ppm |
| Absolute Pull Range (APR) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 97mA | 97mA | 115mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-SMD, No Lead | 4-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) | 0.057" (1.45mm) |
