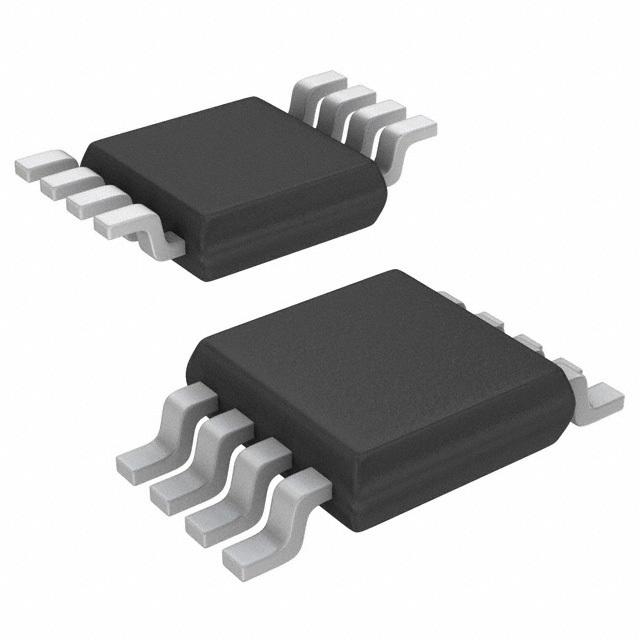

| Part Number | X9315UMZ-2.7T1 | X9315WMZ-2.7T1 | X9315USZ-2.7T1 | X9315TMZ-2.7T1 | X9315UM-2.7T1 | X9315UMI-2.7T1 | X9315UMIZ-2.7T1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Resistance (Ohms) | 50k | 10k | 50k | 100k | 50k | 50k | 50k |
| Interface | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | - | - | - | - | - | - | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-SOIC | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
